| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
| More racking sizes and specifications are available. Please feel free to inquire. | ||||

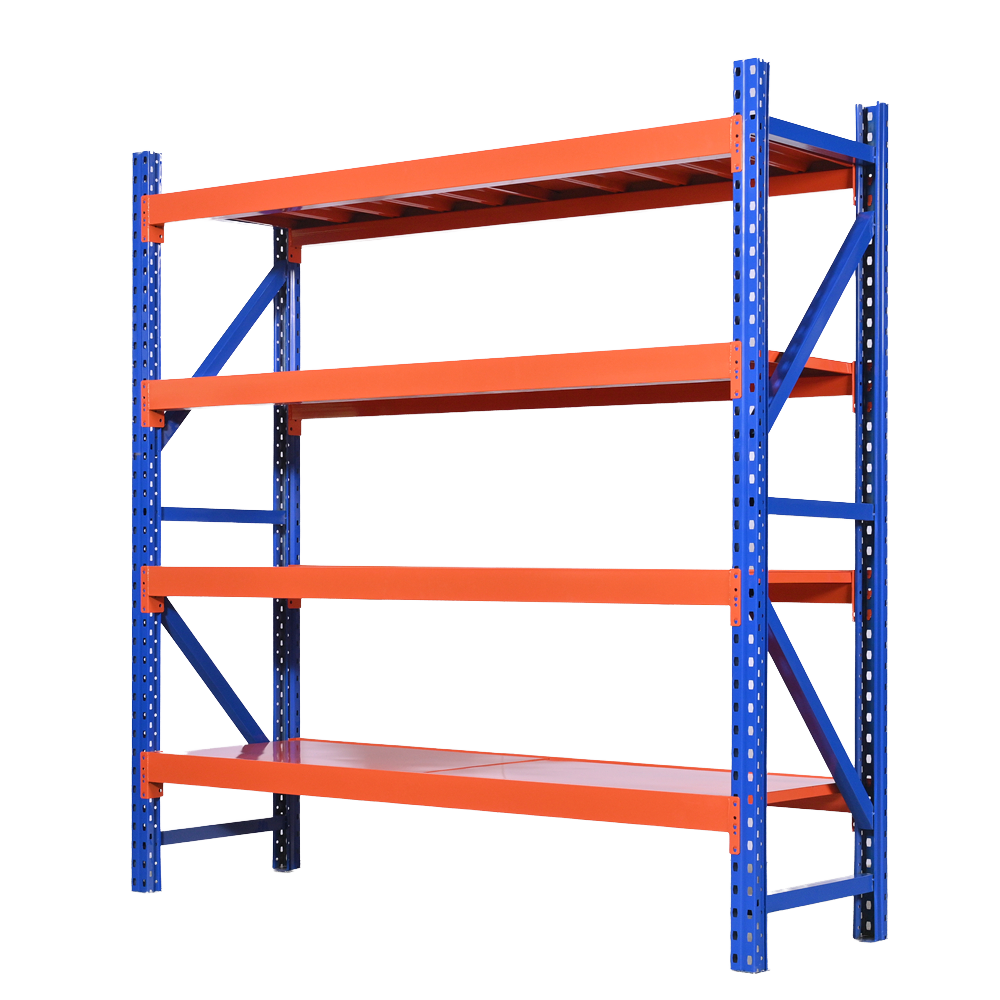

Our medium duty racks support a weight capacity ranging from 100 kgs to 500 kgs per layer, depending on the upright and beam thickness specifications selected.
Yes, we offer multiple standard sizes (such as 1500*500*2000mm and 2000*600*2000mm) and can accommodate other customized dimensions and load specifications to fit your warehouse space.
Racking components are packed using standard export carton boxes or protective bubble wrap. Custom shipping marks or logo printing can also be arranged upon request.
Orders are typically ready for delivery within 10 days, depending on your overall order quantity and specific customization requirements.
Absolutely. Our medium duty shelving systems are specifically engineered for commercial storage, industrial warehouses, and heavy-duty material handling workflows.
