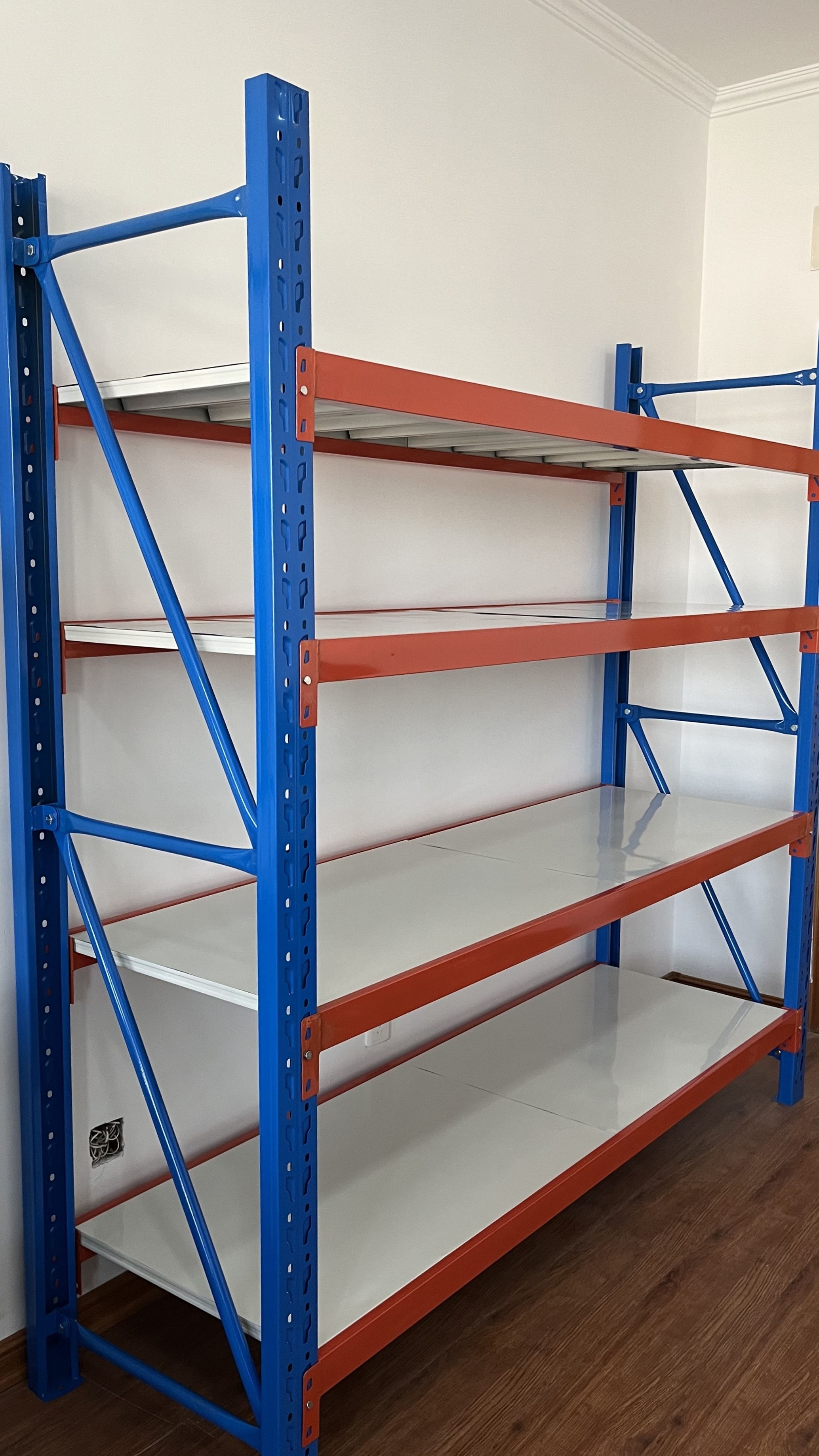

Upright: Combined with horizontal bracing, diagonal bracing, and bayonets. This structure is convenient to install and provides stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for the cross beam, featuring simplicity, reliability, light weight, strong bearing capacity, and low cost.
Connector: A specially designed safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external forces.
Shelf: Laminates adopt strip laminates made with advanced production standards, characterized by high bearing capacity, wear resistance, simple replacement, and low maintenance cost.
| Description | Upright Specification | Beam Specification | Thickness of Shelf | Load Capacity/Layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
| Custom sizes and configurations are available upon request. | ||||
Available via Sea, Air, or International Express.
Delivery Date: Within 10 days or subject to actual order quantity.
