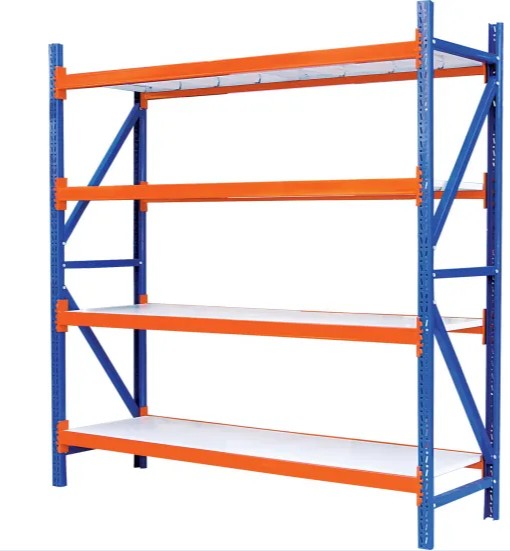

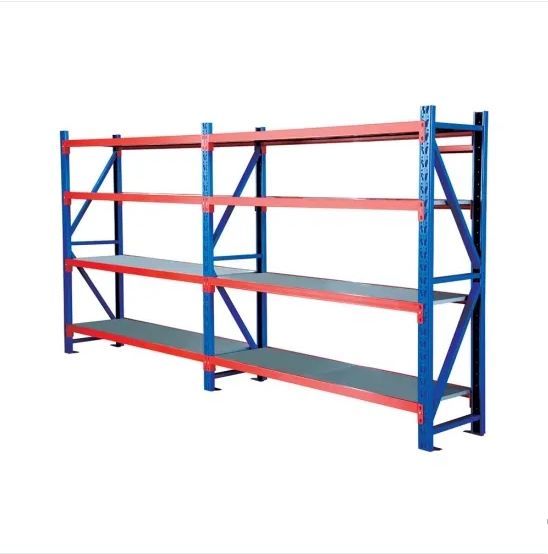

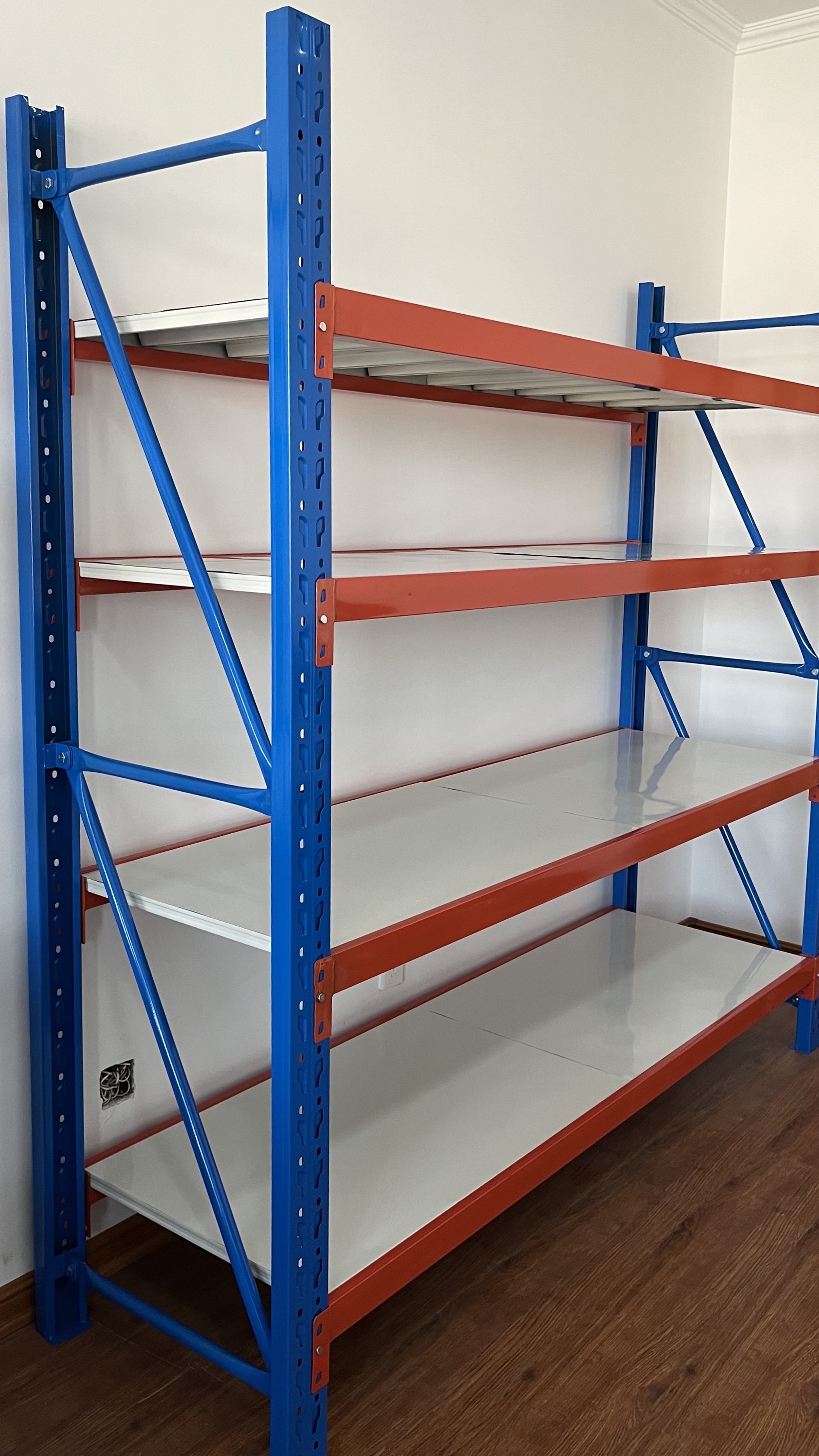

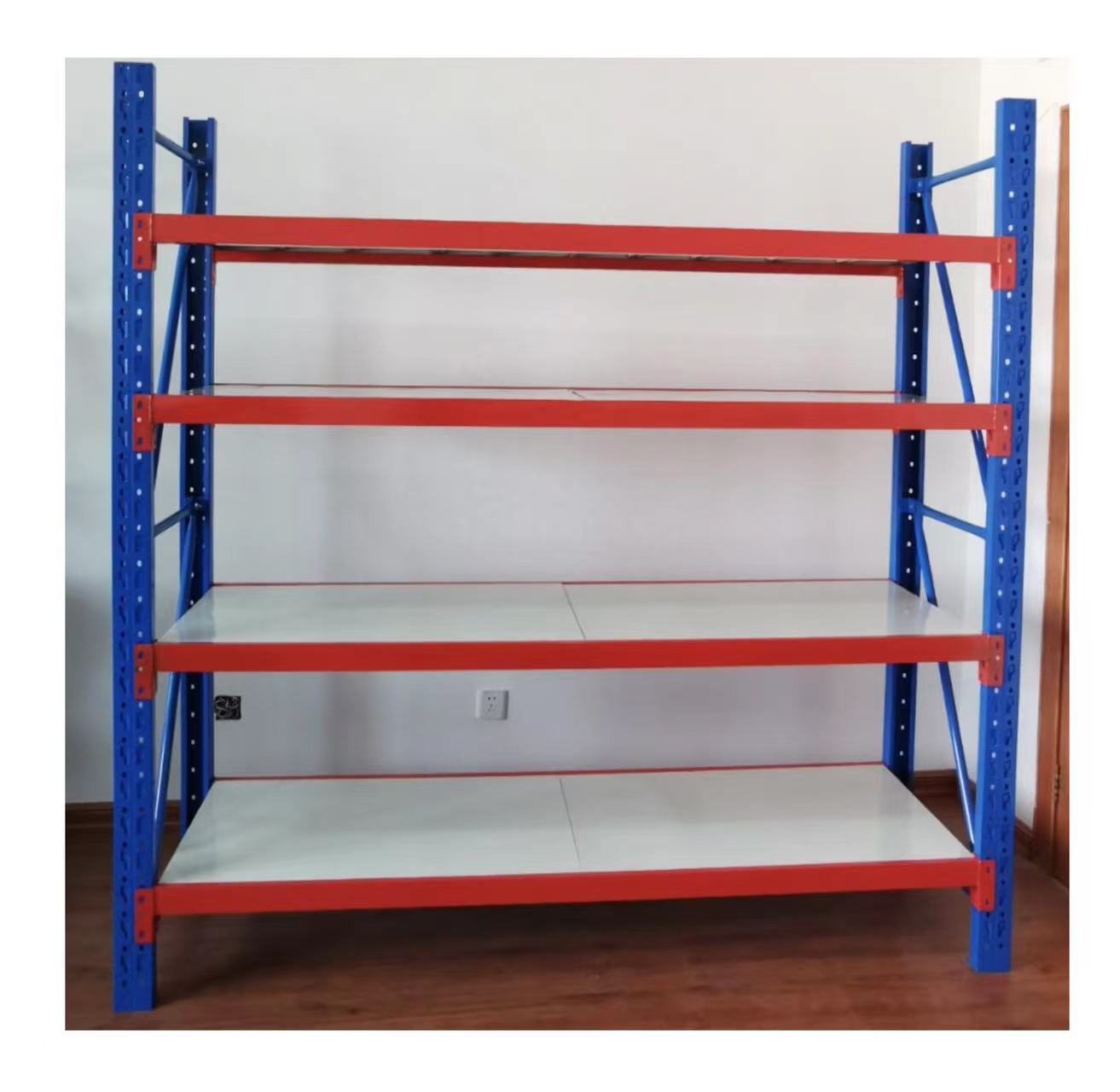

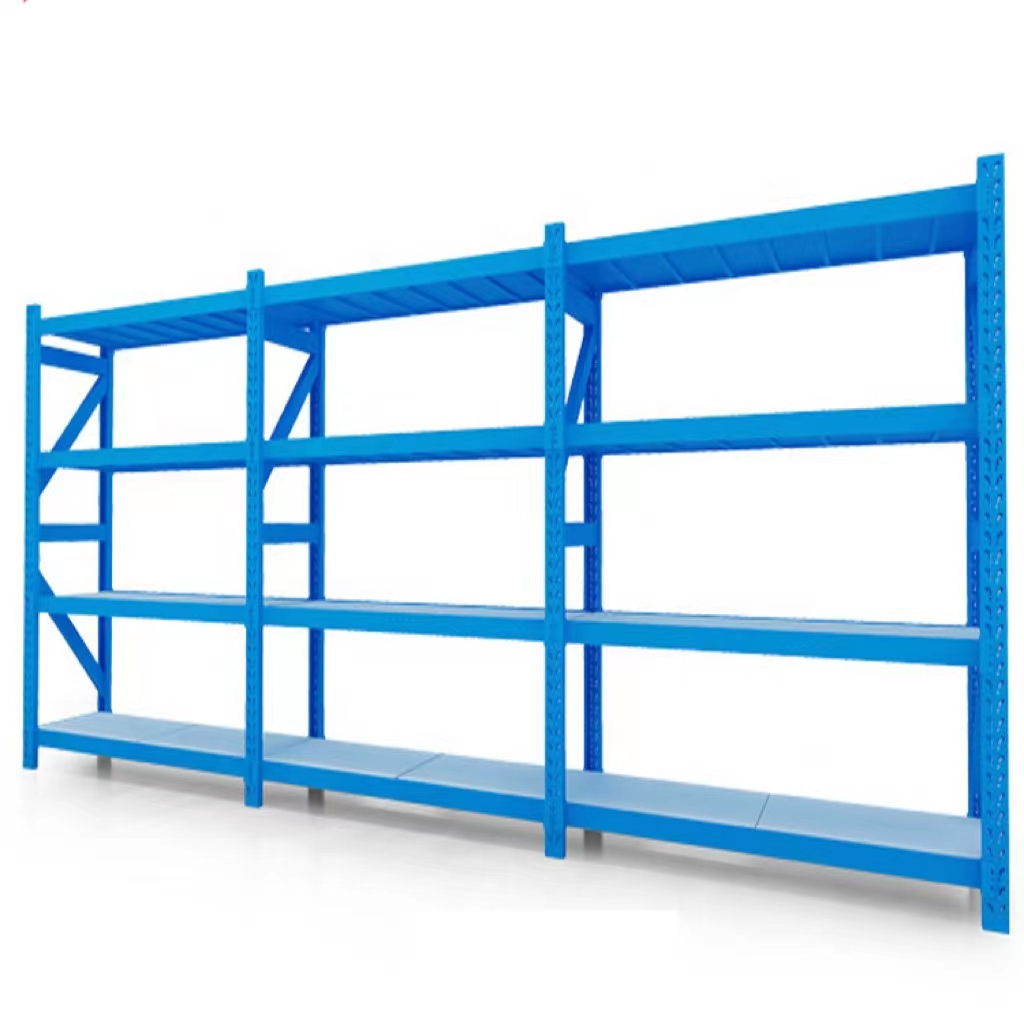

Upright: Combined with horizontal bracing, diagonal bracing, and bayonets. This structural framework is highly convenient to install and delivers significantly stronger load-supporting capabilities.
Beam: A special cold-rolled P-shaped closed beam is utilized as the cross beam. Features simplicity, reliability, light weight, strong bearing capacity, and cost efficiency.

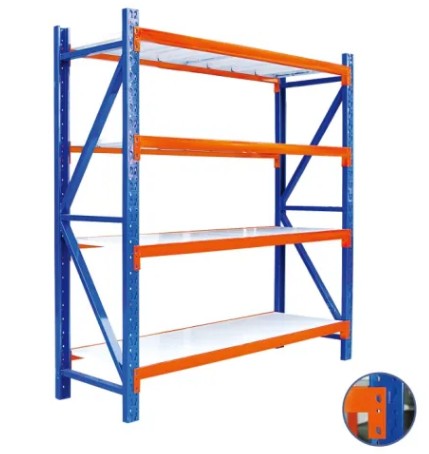

Connector: An integrated safety pin is equipped where the column clamp joins the upright column, ensuring the cross beam cannot be dislodged by external impacts.
Shelf: The steel shelf laminates utilize industry-standard strip laminates characterized by high bearing strength, outstanding wear resistance, simplified replacement, and minimal maintenance overheads.

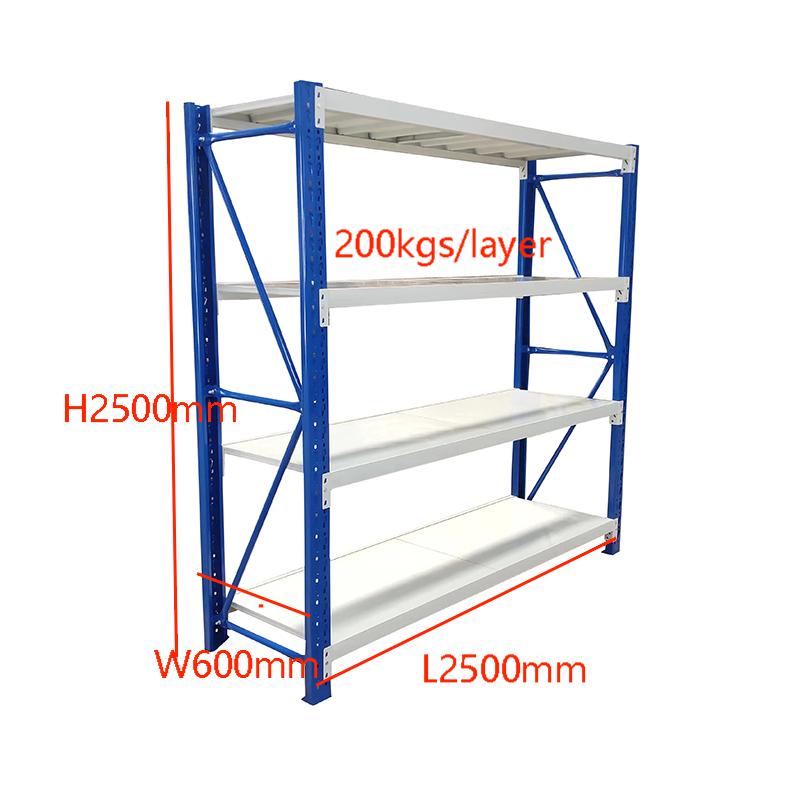

| Description (Size) | Upright Specification | Beam Specification | Thickness of Shelf | Load Capacity / Layer |
|---|---|---|---|---|
| 1500*500*2000 mm | 30*50*0.4 mm | 30*50*0.4 mm | 0.25 mm | 100 kgs |
| 2000*500*2000 mm | 30*50*0.4 mm | 30*50*0.4 mm | 0.25 mm | 100 kgs |
| 1500*600*2000 mm | 40*80*0.7 mm | 40*60*0.7 mm | 0.3 mm | 200 kgs |
| 2000*600*2000 mm | 40*80*0.7 mm | 40*60*0.7 mm | 0.3 mm | 200 kgs |
| 1500*600*2000 mm | 40*80*0.8 mm | 40*60*0.7 mm | 0.35 mm | 300 kgs |
| 2000*600*2000 mm | 40*80*0.8 mm | 40*60*0.7 mm | 0.35 mm | 300 kgs |
| 1500*600*2000 mm | 40*80*1.0 mm | 40*60*1.0 mm | 0.5 mm | 400 kgs |
| 2000*600*2000 mm | 40*80*1.0 mm | 40*60*1.0 mm | 0.5 mm | 400 kgs |
| 2000*600*2000 mm | 40*80*1.1 mm | 50*80*1.5 mm | 0.6 mm | 500 kgs |
1. Packaging structure: Knock-Down (KD) structure. Built with protective polyfoam layers placed between all parts. Packed in a structured, reasonable order to prevent shaking and friction during transport.
2. Exterior protection: Reinforced using 5-layer strong export cartons, sealed firmly with tape, and supported with external packing belts.
3. Custom marking: Capable of printing shipping marks or product identification information according to requirements.
4. Installation documentation: Each package contains detailed, step-by-step installation instructions.
Shipping Methods: Supported by Sea, Air, or International Express.
Delivery Details: Standard delivery schedule within 10 days or depending on customized order volume requirements.
