Adjustable Flexible Steel Shelving long span bolted racks heavy duty metal storage shelf racking warehouse racks
Our medium duty shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings - where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.
| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
Upright: Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.

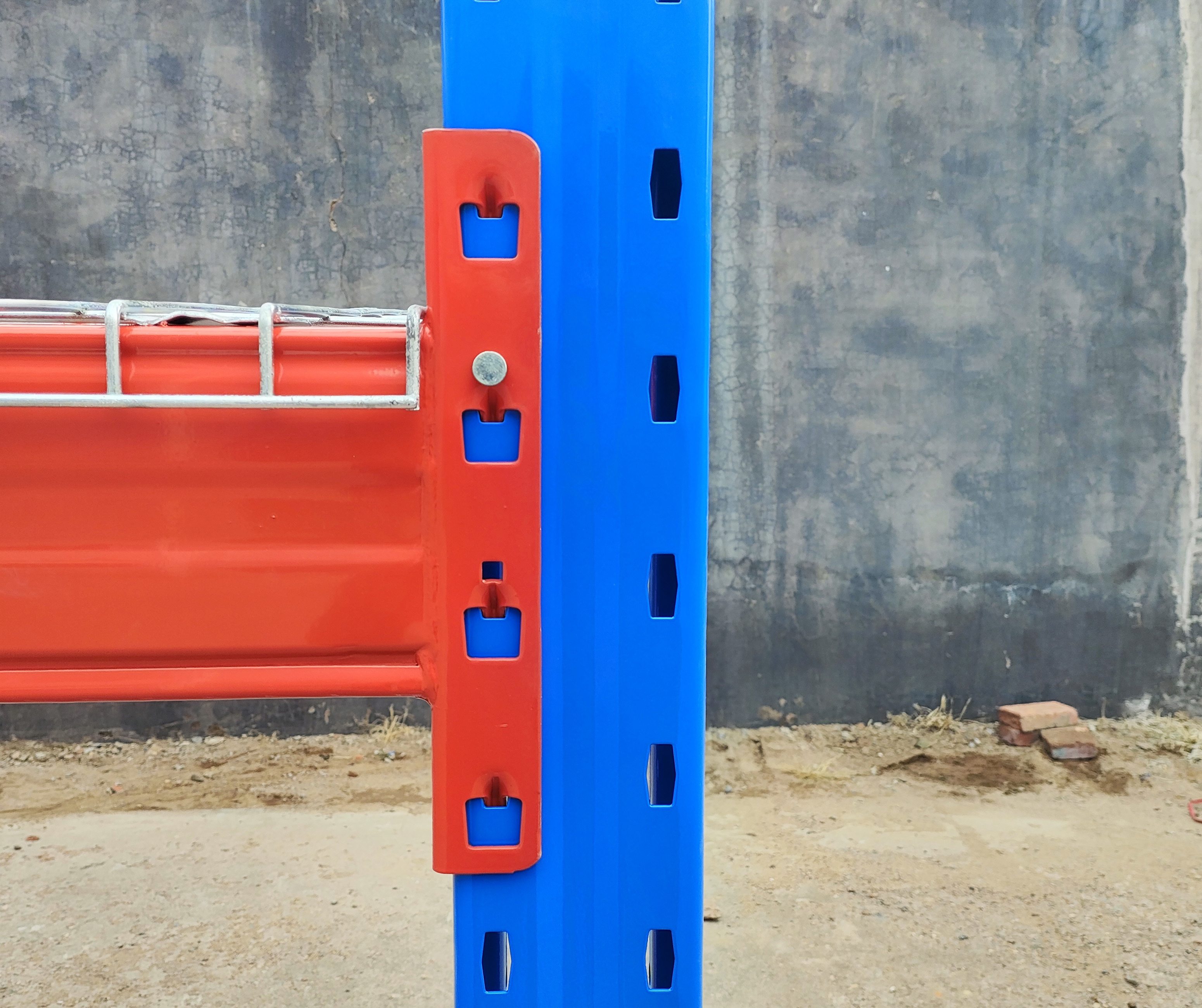

Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
We are one of the leading racking suppliers in China. We offer shelving systems for any environment and racking systems for warehouses for all types of loads. We dedicate ourselves to providing quality racking systems at competitive prices.
Our main product categories include:
Recommended by seller
We are a professional manufacturer for steel furniture.
The material is standard cold-rolled steel plate. Electrostatic Powder Coating Surface avoids rust. Our product range includes all kinds of steel office furniture, such as steel cabinets, mobile shelving, locker wardrobes, bunk beds, etc.
Yes, we offer custom-made service to our clients. You need to provide us some technical data such as dimension and drawing.
Raw material - QC - cutting - pressing - bending - welding - QC - Phosphating - powder painting - QC - packing.
Polyfoam + 5-layer corrugated carton. For LCL and sample, we will consider using a polywood case to reinforce and avoid damage during transportation.
Yes, there is an assembling instruction in each carton. If required, you will also receive our assembling video.
