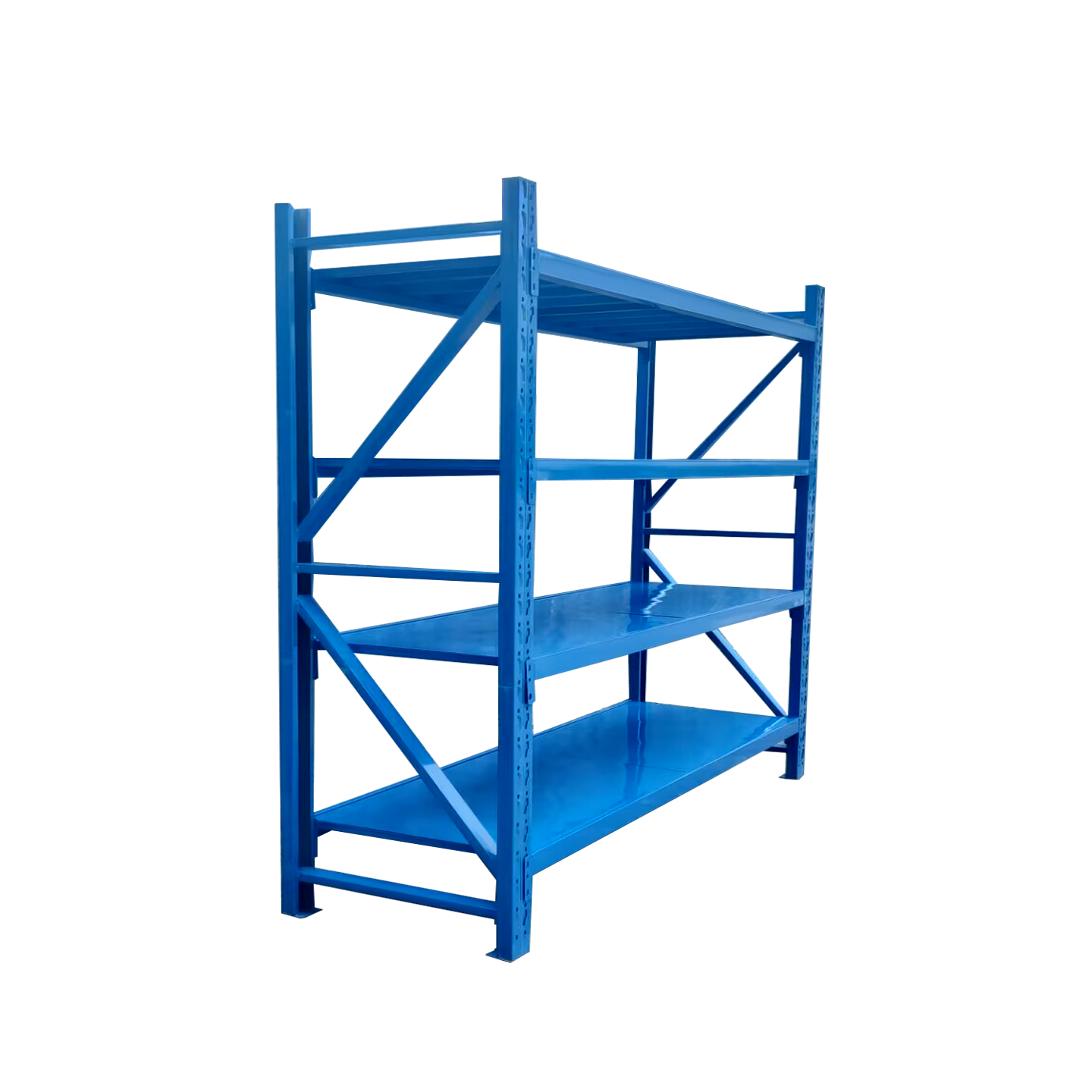

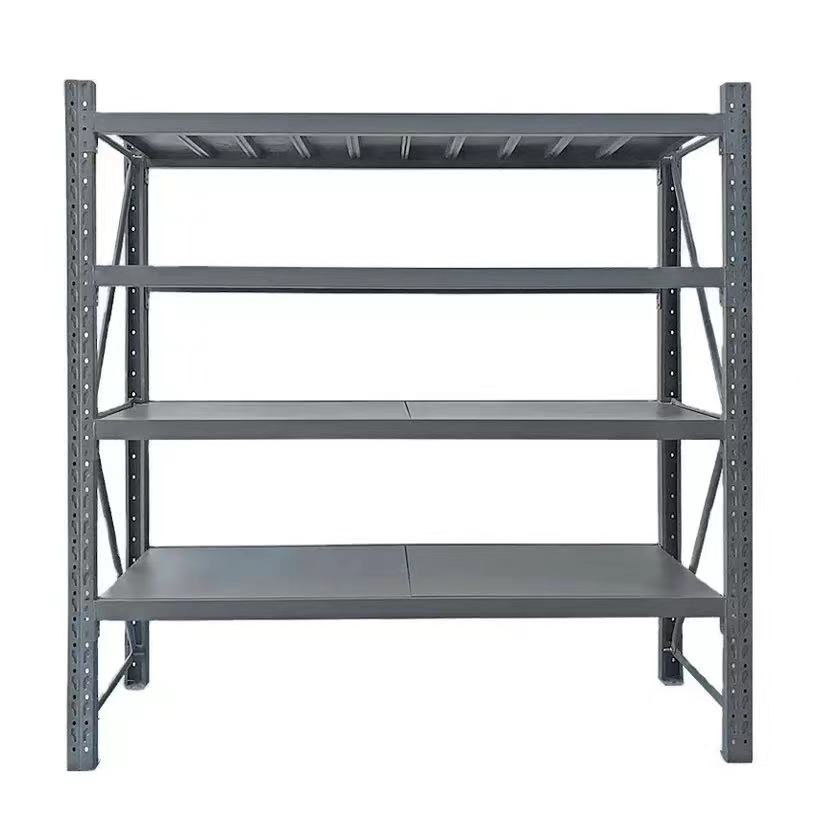

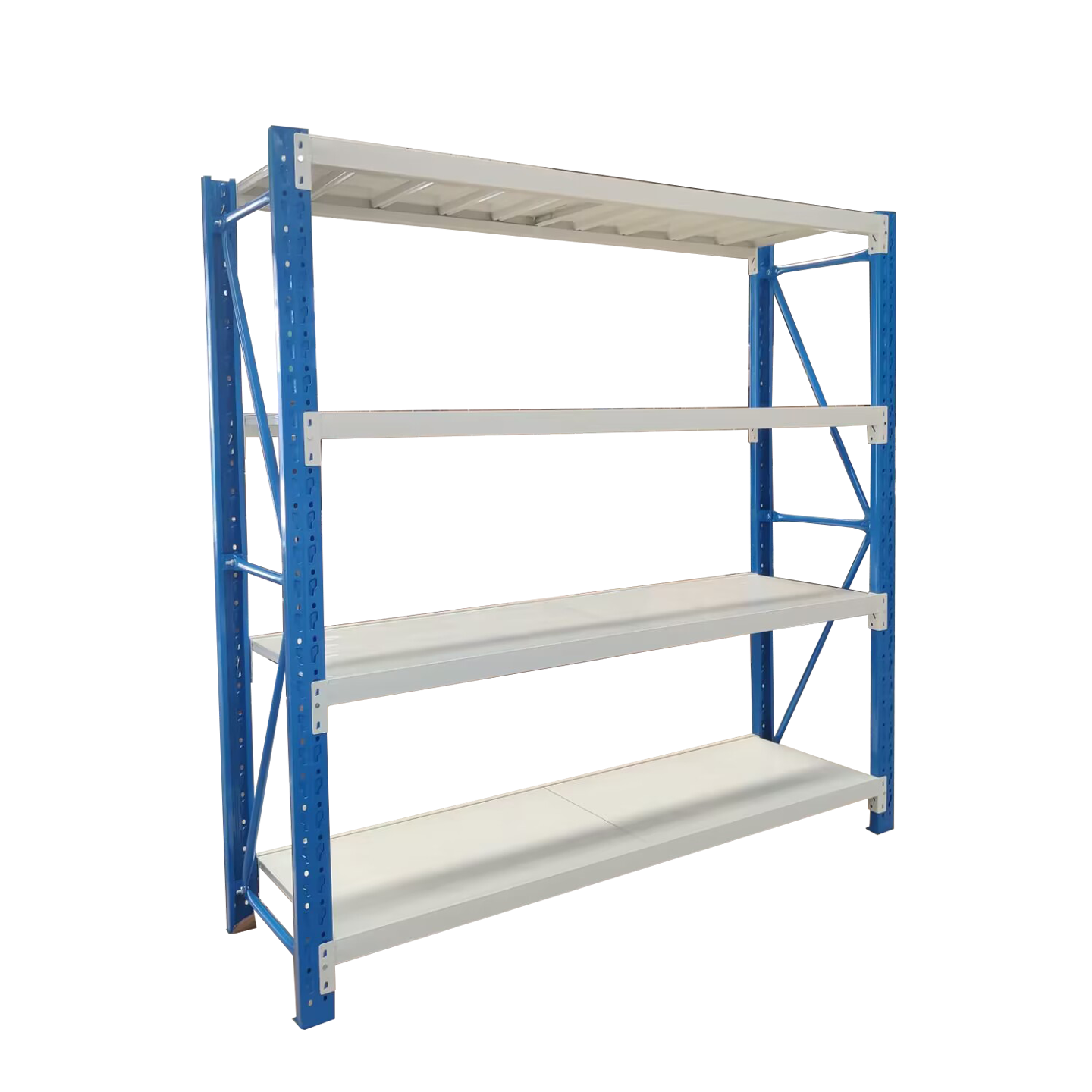

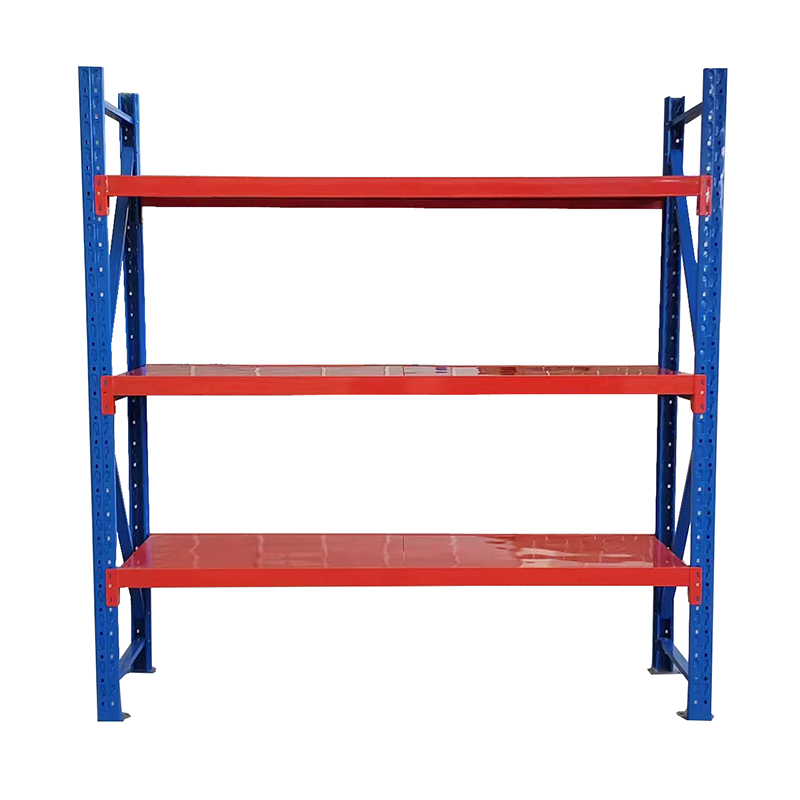

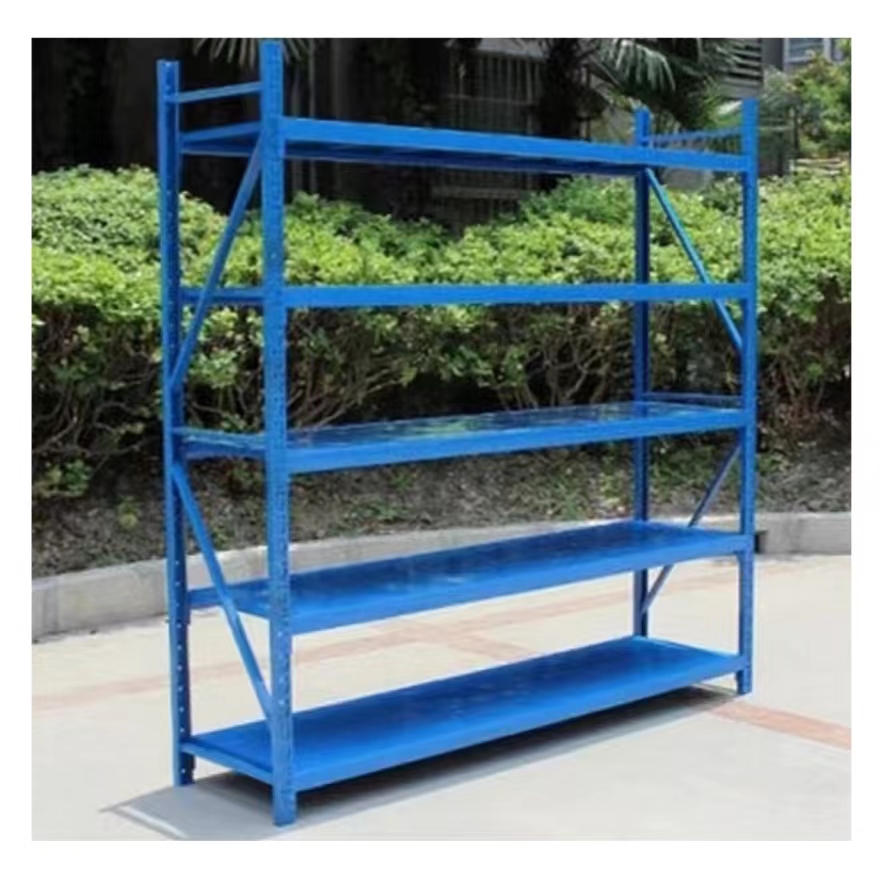

Our medium duty shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings - where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.
| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80.1.5mm | 0.6mm | 500kgs |
Upright: Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3. Can print LOGO or shipping mark as the customer wants.
By Sea, By Air, By international Express.
Delivery Date within 10 days or according to your order quantity.
We are one of the leading racking suppliers in China. We have shelving systems for any environment and racking systems for warehouses for all types of loads. We dedicate ourselves to provide quality racking systems at competitive prices.
