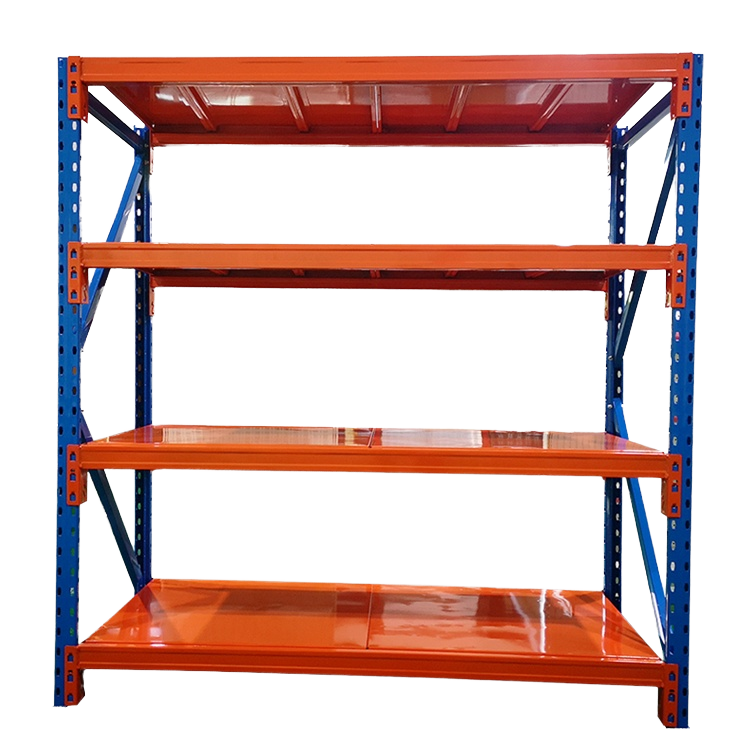

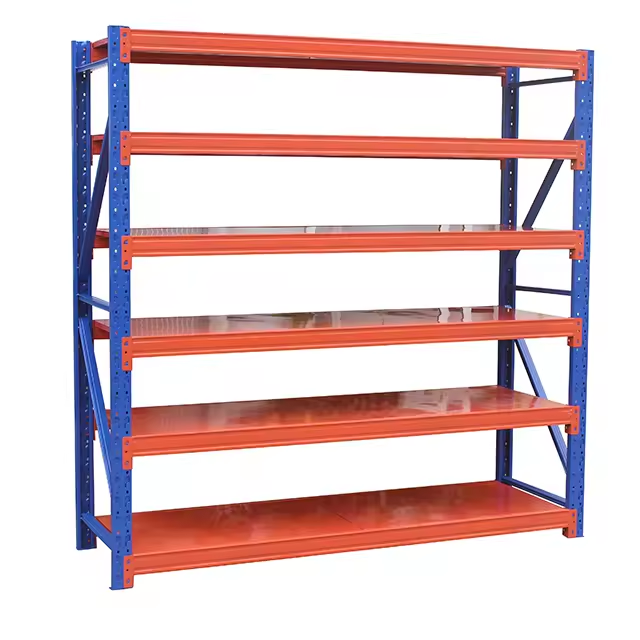

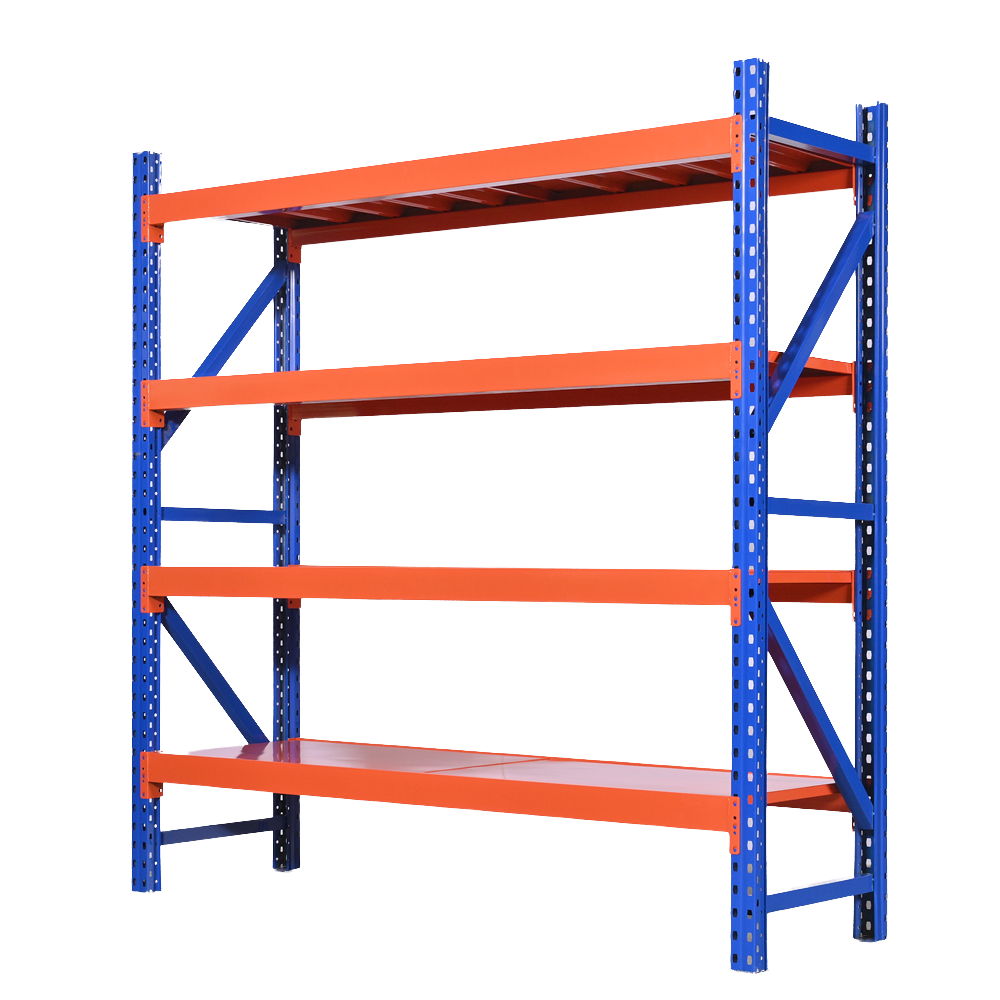

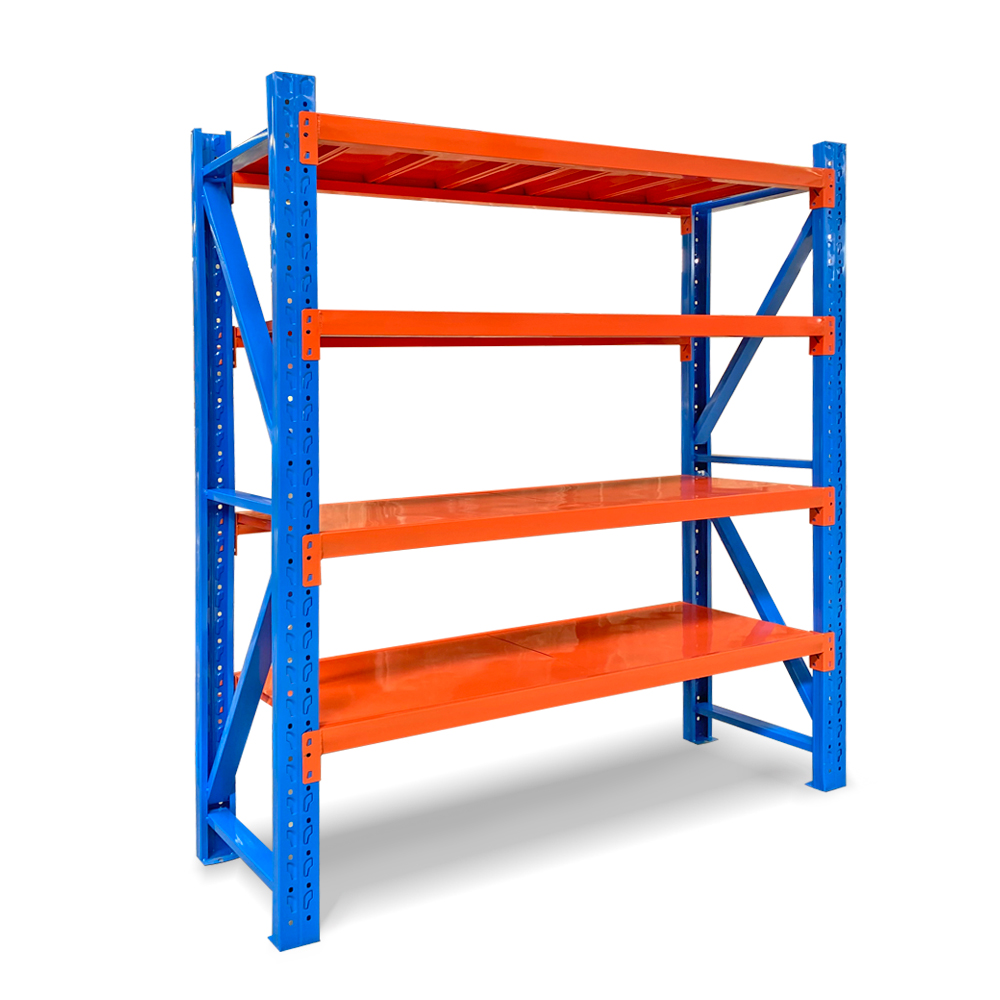

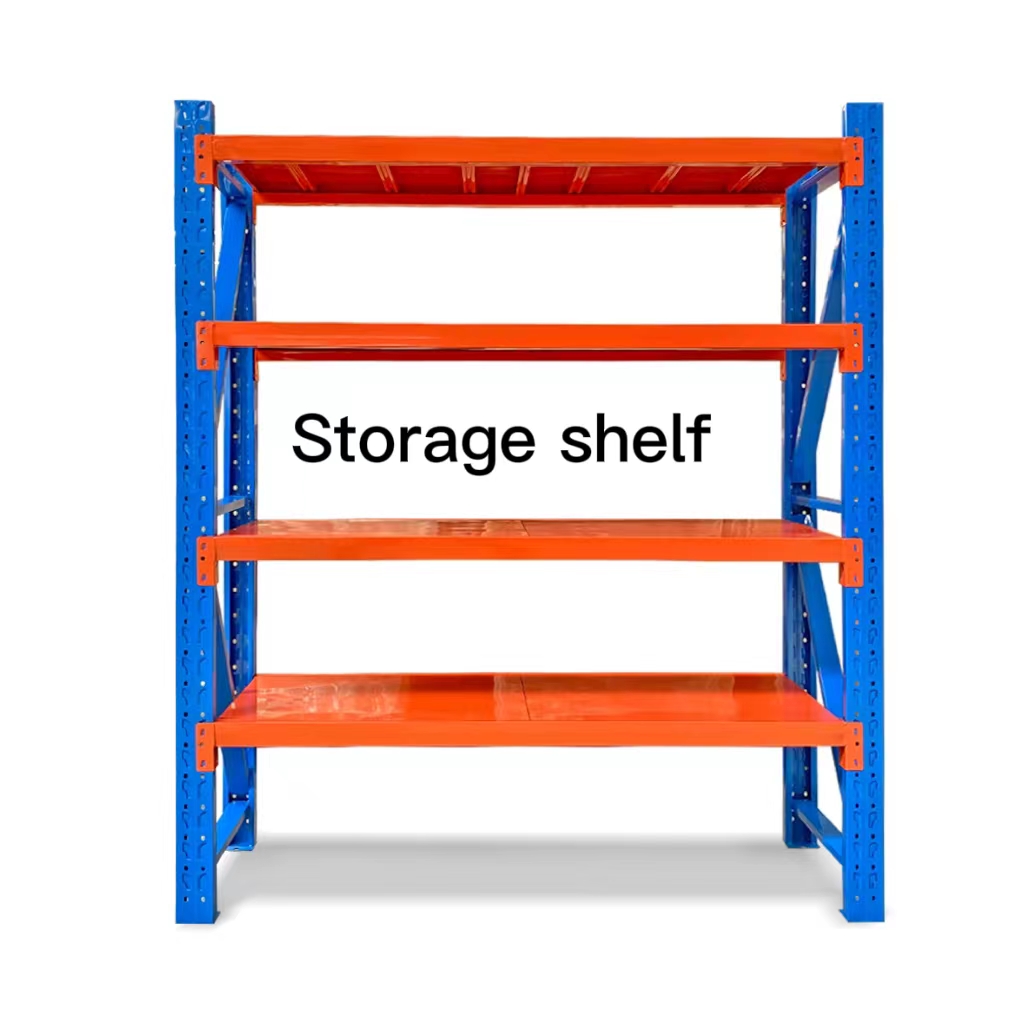

Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
1 / 5
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units
Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units

Chaoyu Rack 100kg Corrosion Protected Garage Warehouse Medium Duty Racks Industrial Shelving Units

Send Inquiry

Product Description

Adjustable Flexible Steel Shelving Long Span Bolted Racks Heavy Duty Metal Storage Shelf Racking Warehouse Racks
Our medium duty shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings - where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.
Flexible Steel Shelving
Long Span Bolted Racks
Heavy Duty Metal Storage Shelf
Warehouse Racking System
Storage Rack Front View
Industrial Storage Shelf
Shelving System Structure
Product Specifications
Description Upright Specification Beam Specification Thickness of the shelf Load capacity/layer
1500*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
2000*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
1500*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
2000*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
1500*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
2000*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
1500*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.1mm 50*80*1.5mm 0.6mm 500kgs
Shelving Height Adjustments Shelving Structure Dimensions
Details Images
Metal Shelving Connection Details Upright and Beam Structure Details
Upright & Beam Details
Upright: Combined with horizontal bracing, diagonal bracing, and bayonets. This structure is convenient to install and offers stronger supporting power.

Beam: A special cold-rolled P-shaped closed beam is used for the cross beam, featuring simplicity, reliability, light weight, strong bearing capacity, and low cost.
Connector & Shelf Details
Connector: A specially designed safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external forces.

Shelf: Laminates adopt strip laminates, which feature strong bearing capacity, wear resistance, simple replacement, and low maintenance costs.
Racking Load Test Details
Packing & Shipping
Racking Packing Process
Packing
1. KD structure, polyfoam between every part, packed orderly and reasonably, not easy to shake.
2. Outside with five layers of strong carton, tape sealing, and packing belts to reinforce.
3. Custom printing of LOGO or shipping marks as required.
Racking Shipping Process
Shipping
- Delivery options include By Sea, By Air, and International Express.
- Delivery dates are typically within 10 days, depending on your order quantity.
Exhibition
Product Exhibition Showcase
Our Racking Systems
We are one of the leading racking suppliers in China. We offer shelving systems for any environment and racking systems for warehouses to handle all types of loads. We dedicate ourselves to providing quality racking systems at competitive prices.
Our main product categories include:
  • Light Duty Racking Systems: Boltless Rack
  • Medium Duty Racking Systems: Valuespan Shelving Rack
  • Heavy Duty Racking Systems: Selective Pallet Rack, Heavy Duty Shelving Rack
  • Warehouse Duty Racking Systems: Heavy Duty Shelving with Top Flooring, Multi-Tier Shelving System
  • Gondola Shelving System: Wall Gondola, Cashier Counter
Racking Manufacturing Facility
Certifications
Quality Standard Certifications
Recommended Products
Recommended Rack Option 1
Recommended Rack Option 2
Recommended Rack Option 3
Recommended Rack Option 4
Recommended Rack Option 5
Recommended Rack Option 6
Recommended Rack Option 7
Recommended Rack Option 8
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
Yes, we are a professional manufacturer of steel furniture.
2. What is the raw material and your product range?
The raw material is standard cold-rolled steel plate. An electrostatic powder coating surface is applied to prevent rust. Our product range includes all kinds of steel office and warehouse furniture, such as steel cabinets, mobile shelving, locker wardrobes, bunk beds, and racking systems.
3. Can you customize and supply samples?
Yes, we offer custom-made services to our clients. You need to provide us with technical data such as dimensions and drawings.
4. What is your production procedure?
Our process includes: Raw material → QC → Cutting → Pressing → Bending → Welding → QC → Phosphating → Powder painting → QC → Packing.
5. What packaging do you use?
We pack with polyfoam and a 5-layer corrugated carton. For LCL shipments and samples, we use plywood cases to reinforce the packaging and prevent damage during transportation.
6. Is assembly easy?
Yes, assembly instructions are included in each carton. Assembly videos can also be provided upon request.
