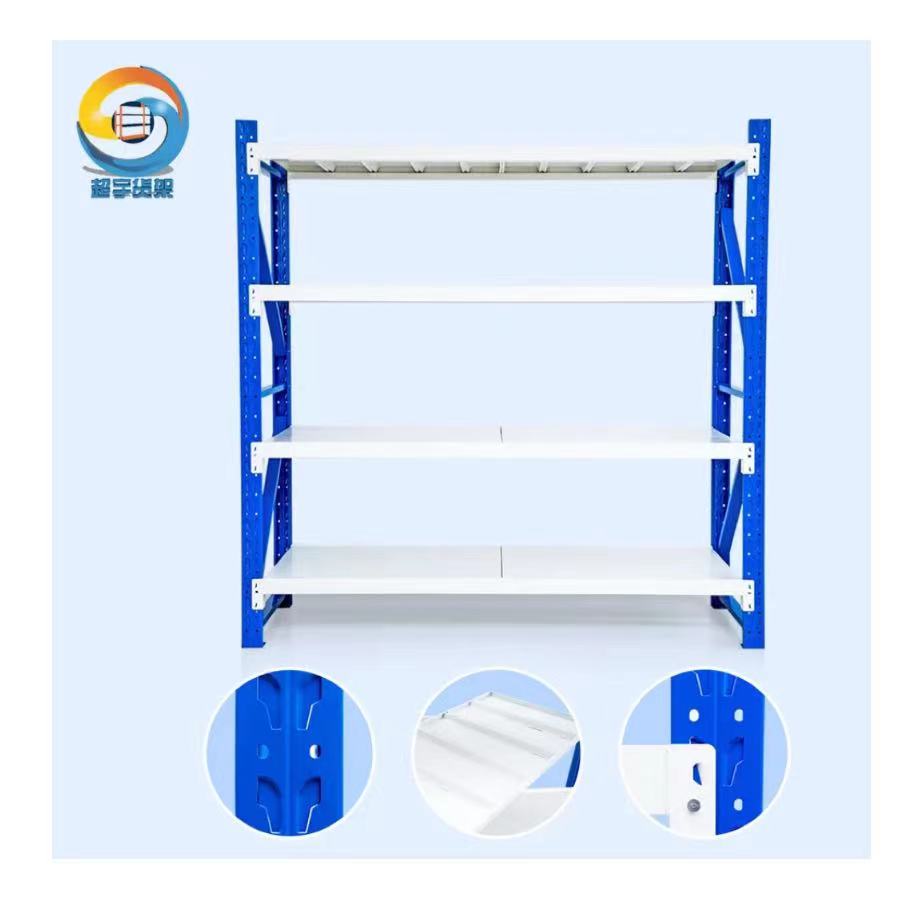

Upright: Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and features strong supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates, which feature strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
| Description (Dimensions) | Upright Specification | Beam Specification | Thickness of Shelf | Load Capacity/Layer |
|---|---|---|---|---|
| 1500*500*2000 mm | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100 kgs |
| 2000*500*2000 mm | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100 kgs |
| 1500*600*2000 mm | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200 kgs |
| 2000*600*2000 mm | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200 kgs |
| 1500*600*2000 mm | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300 kgs |
| 2000*600*2000 mm | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300 kgs |
| 1500*600*2000 mm | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400 kgs |
| 2000*600*2000 mm | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400 kgs |
| 2000*600*2000 mm | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500 kgs |
1. KD Structure: Knocked Down structure with polyfoam padding between every part, packed in an orderly and reasonable arrangement to prevent shaking.
2. Exterior Packaging: Wrapped in a five-layer strong carton, sealed with tape, and reinforced with packing belts.
3. Customization: Can print LOGO or shipping marks according to customer requirements.
4. Instructions: Each product includes detailed installation instructions.
By Sea, By Air, or by International Express.
Delivery Date: Within 10 days or depending on the order quantity.
Yes, we can customize the storage racks entirely according to your specified drawings, height, depth, and loading capacity requirements.
Our standard systems range from 100 kg up to 500 kg per layer, depending on the upright post thickness and beam profile configuration chosen.
No, the modular Knocked Down (KD) design makes assembly very simple. It requires virtually no complex tools, and a detailed installation instruction booklet is included with every delivery.
Each beam connection comes with a specialized safety pin. This ensures the beam stays locked to the column clamp even when subject to external impacts from forklifts or manual operations.
Parts are organized inside five-layer strong shipping cartons with polyfoam spacers placed between structural elements. The boxes are then tightly sealed and reinforced with external packing bands.
Standard shipments are ready within 10 days, depending on the size and quantity of your current order schedule.
