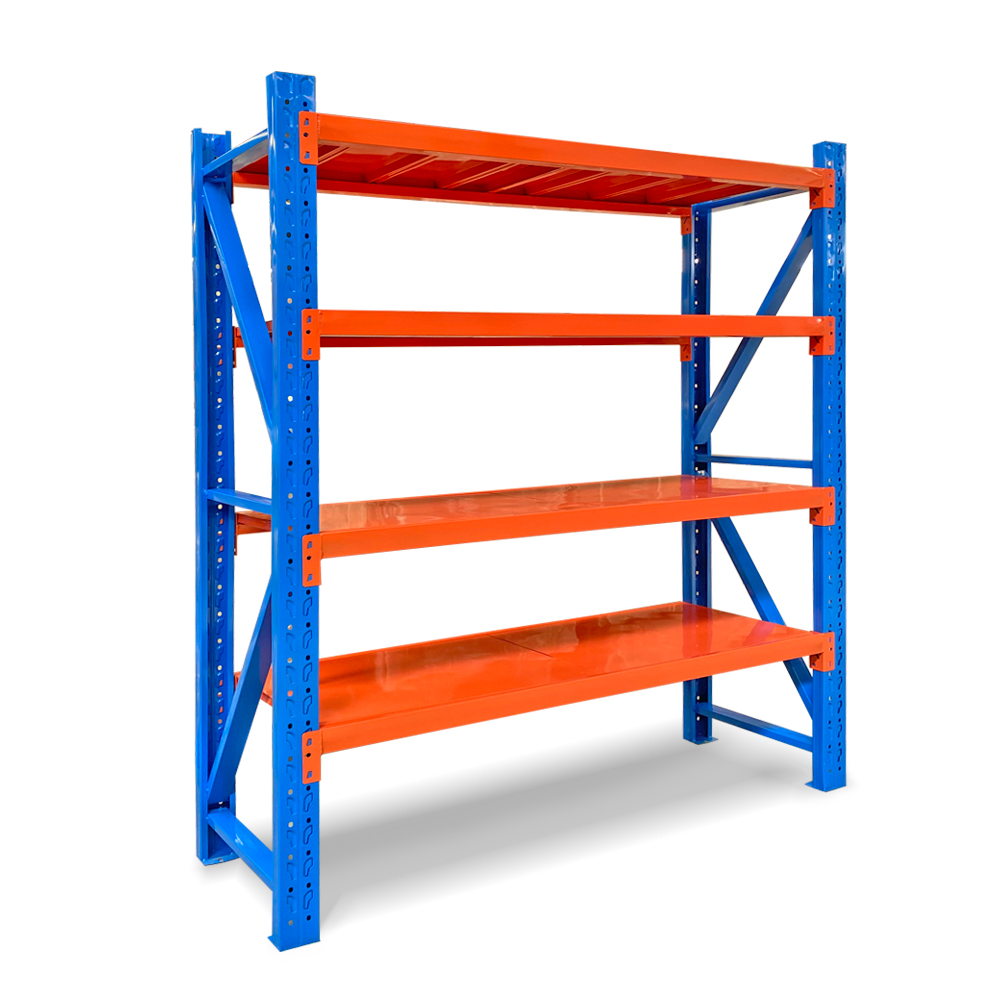

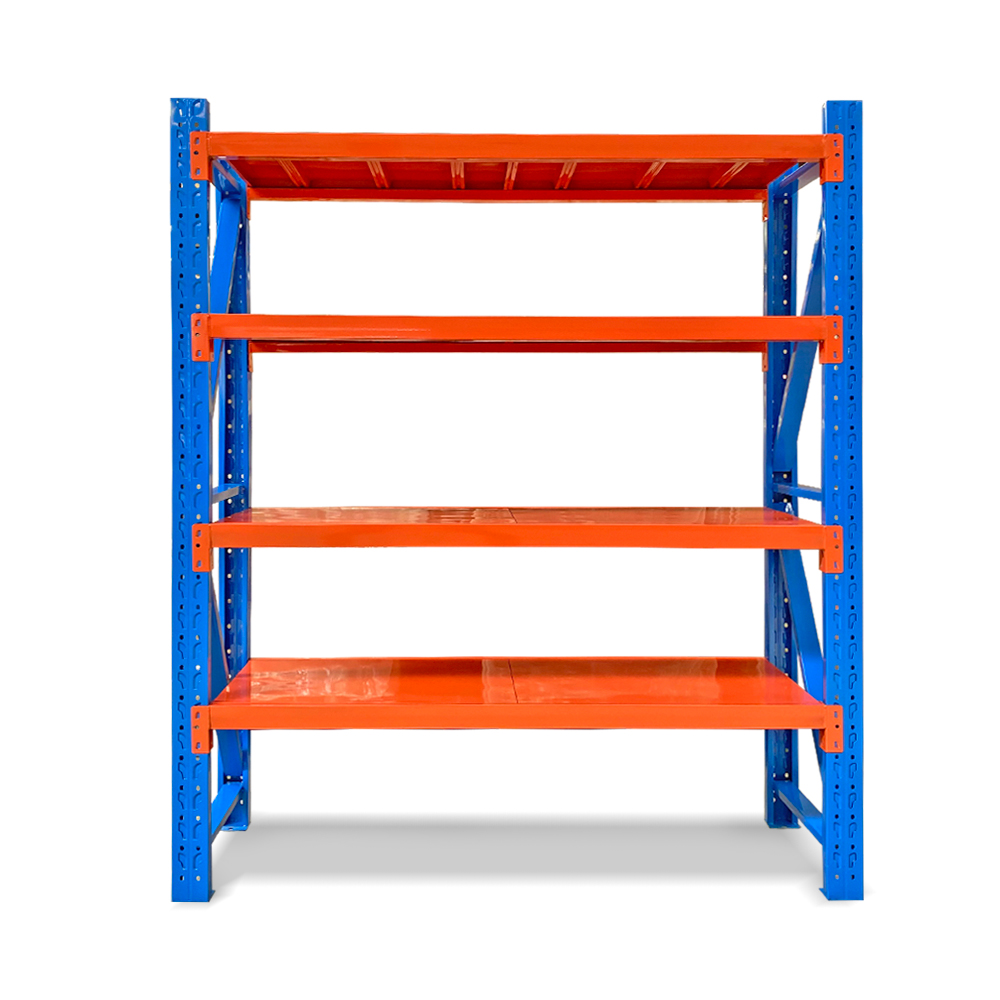

Upright: Scoped with horizontal bracing, diagonal bracing, and bayonets. This modular design structure is exceptionally convenient to install and features robust, strong supporting power.
Beam: Special cold-rolled P-shaped closed beam profile is integrated as the cross beam. Features simplicity, reliability, light weight, superior bearing capacity, and lower costs.
Connector: A uniquely engineered safety pin locks in place when the column clamp connects with the upright column, ensuring the beam will not dislodge or fall under severe external impacts.
Shelf: Steel deck laminates employ standard strip design, providing strong load-bearing capabilities, high wear resistance, straightforward replacement, and minimal maintenance costs.
| Description (mm) | Upright Specification | Beam Specification | Thickness of the Shelf | Load Capacity / Layer |
|---|---|---|---|---|
| 1500 * 500 * 2000 | 30 * 50 * 0.4mm | 30 * 50 * 0.4mm | 0.25mm | 100 kgs |
| 2000 * 500 * 2000 | 30 * 50 * 0.4mm | 30 * 50 * 0.4mm | 0.25mm | 100 kgs |
| 1500 * 600 * 2000 | 40 * 80 * 0.7mm | 40 * 60 * 0.7mm | 0.3mm | 200 kgs |
| 2000 * 600 * 2000 | 40 * 80 * 0.7mm | 40 * 60 * 0.7mm | 0.3mm | 200 kgs |
| 1500 * 600 * 2000 | 40 * 80 * 0.8mm | 40 * 60 * 0.7mm | 0.35mm | 300 kgs |
| 2000 * 600 * 2000 | 40 * 80 * 0.8mm | 40 * 60 * 0.7mm | 0.35mm | 300 kgs |
| 1500 * 600 * 2000 | 40 * 80 * 1.0mm | 40 * 60 * 1.0mm | 0.5mm | 400 kgs |
| 2000 * 600 * 2000 | 40 * 80 * 1.0mm | 40 * 60 * 1.0mm | 0.5mm | 400 kgs |
| 2000 * 600 * 2000 | 40 * 80 * 1.1mm | 50 * 80 * 1.5mm | 0.6mm | 500 kgs |
| More racking sizes and custom specifications are available. | ||||
Shipping Methods: Supported by Sea freight, Air freight, and major international Express channels.
Delivery Date: Fast shipment within 10 days, adjusted depending on final order volume.
