| Description | Upright Specification | Beam Specification | Thickness of the Shelf | Load Capacity/Layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
| For more racking sizes and specifications, please contact us. | ||||
Yes, we can customize the storage racks entirely according to your design drawings and specific requirements.
The load capacity varies by specification, ranging from 200 kg up to 500 kg per layer depending on the upright and beam thickness selected.
Yes, the racks feature a modular manual storage system designed for quick and easy assembly. They can be extended and adjusted with virtually no tools required.

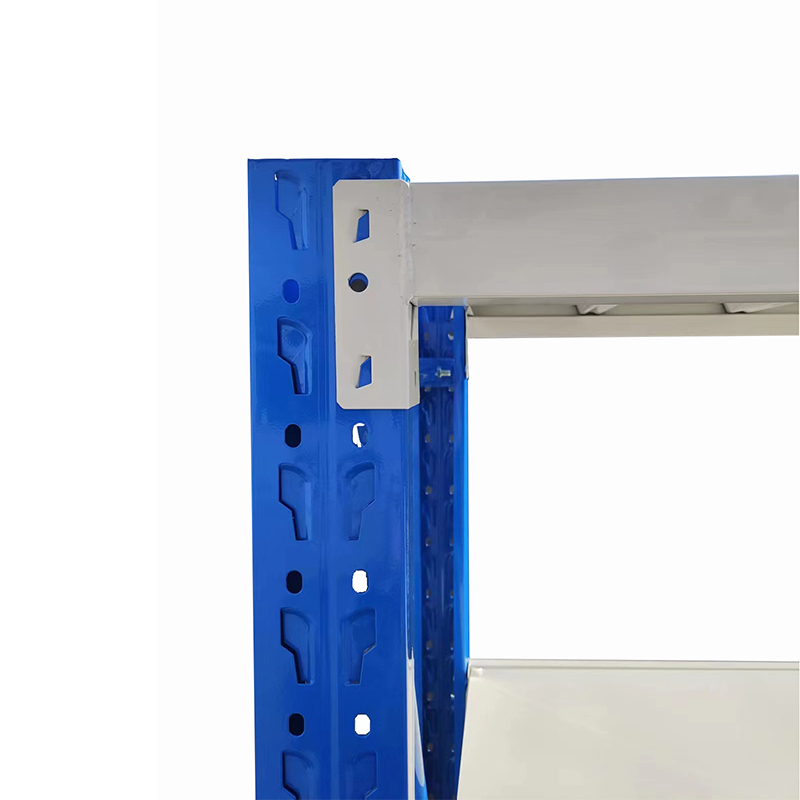

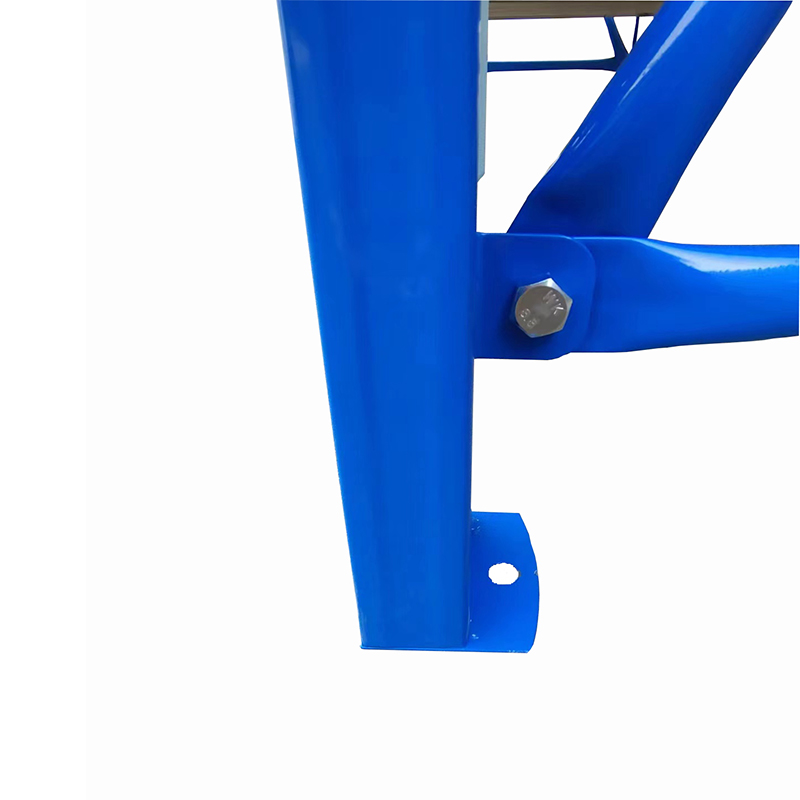

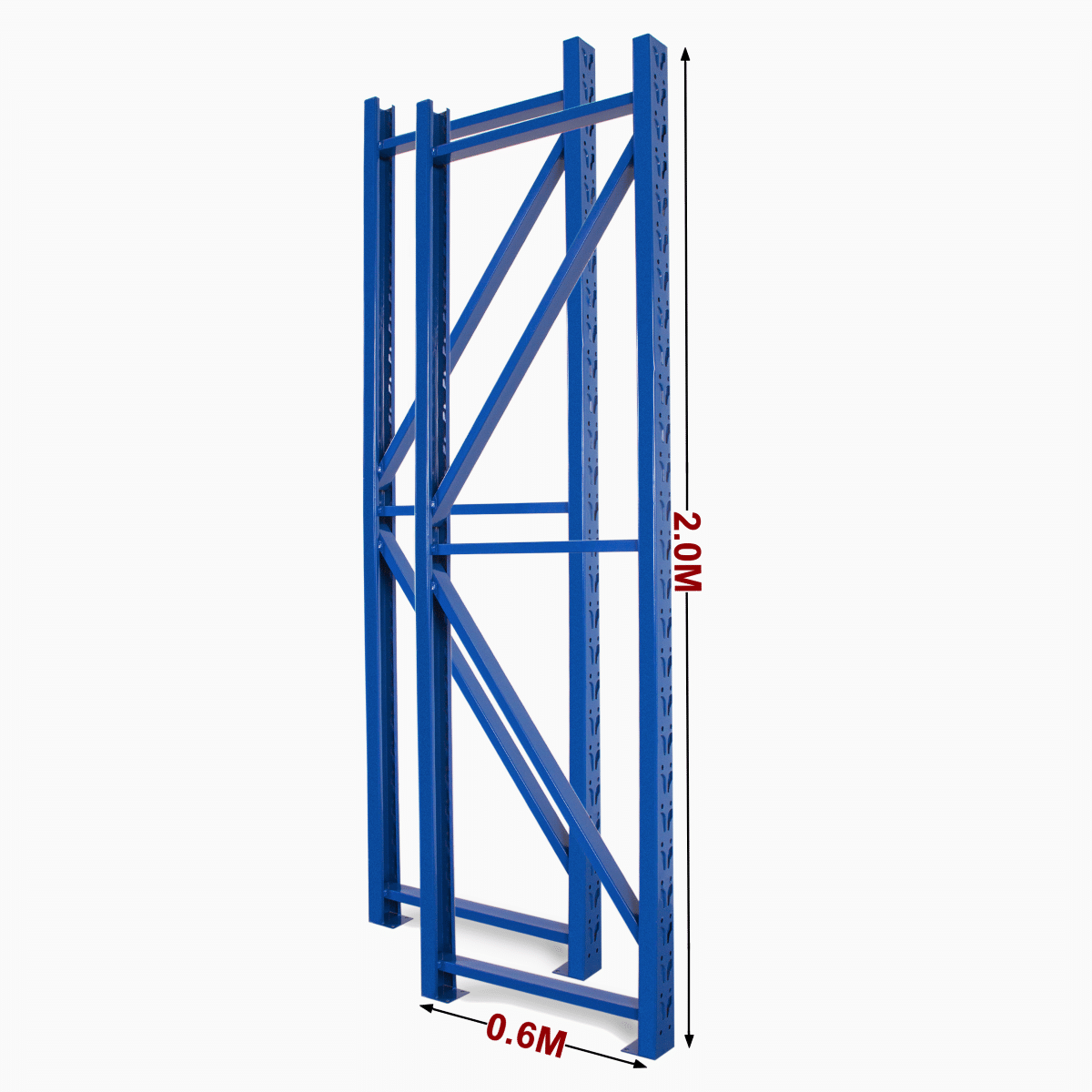

The uprights combine horizontal and diagonal bracing with a bayonet for convenient installation and robust support. The cross beams utilize a cold-rolled P-shaped closed design, ensuring lightweight strength and reliability.

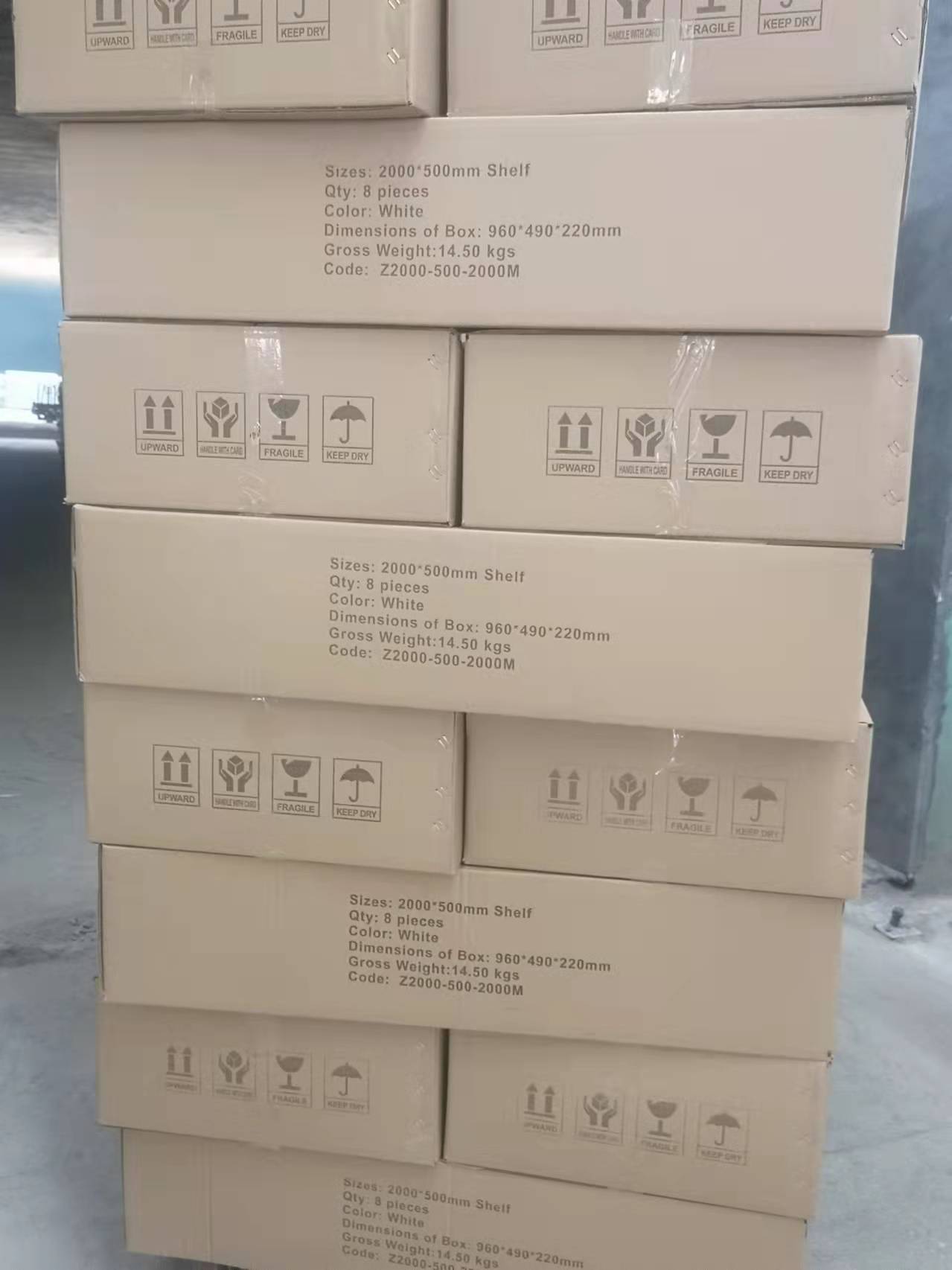

We pack the products using a KD (knocked-down) structure with polyfoam inserts between parts. The outer packaging consists of a five-layer strong carton, sealed with tape and reinforced with packing belts.
We support shipping by Sea, Air, and International Express. The delivery date is typically within 10 days, depending on your order quantity.
