Chaoyu Storage
1 / 5
| Model | Width * Depth * Height (mm) | Layers | Load Capacity | Specification Details |
|---|---|---|---|---|
| Light Duty Storage Racks | 1200 * 400 * 2000 | 4 Layers | 100 kg / Layer |
Frame: 30 * 50 * 0.6 mm Beam: 30 * 50 * 0.4 mm Steel Panel: 0.3 mm |
| 1200 * 500 * 2000 | ||||
| 1500 * 400 * 2000 | ||||
| 1500 * 500 * 2000 | ||||
| 2000 * 400 * 2000 | ||||
| 2000 * 500 * 2000 | ||||

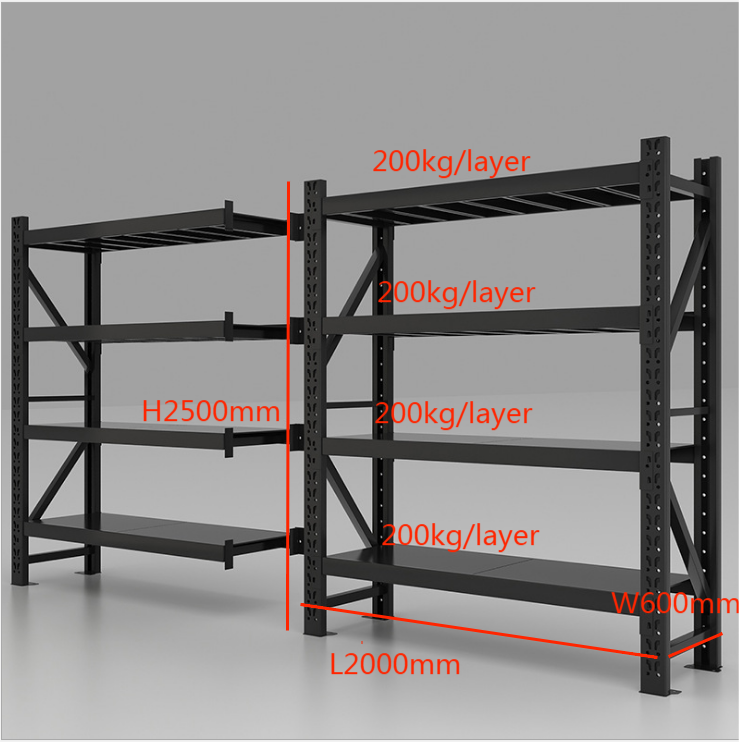

| Medium Duty Storage Racks | 1500 * 500 * 2000 | 4 Layers | 200 kg / Layer |
Frame: 40 * 80 * 0.7 mm Beam: 40 * 60 * 0.6 mm Steel Panel: 0.3 mm |
| 1500 * 600 * 2000 | ||||
| 2000 * 500 * 2000 | ||||
| 2000 * 600 * 2000 | ||||
| Heavy Duty Pallet Racking System | 2000 * 600 * 2000 | 4 Layers | 300 kg / Layer |
Frame: 40 * 80 * 0.7 mm Beam: 40 * 60 * 0.7 mm Steel Panel: 0.35 mm |
| 2000 * 6000 * 2000 | 4 Layers | 400 kg / Layer |
Frame: 40 * 80 * 1.0 mm Beam: 40 * 60 * 1.0 mm Steel Panel: 0.5 mm |
|
| 2000 * 600 * 2000 | 4 Layers | 500 kg / Layer |
Frame: 40 * 80 * 1.2 mm Beam: 50 * 80 * 1.2 mm Steel Panel: 0.6 mm |
|
| All sizes can be customized as per requirements! | ||||
