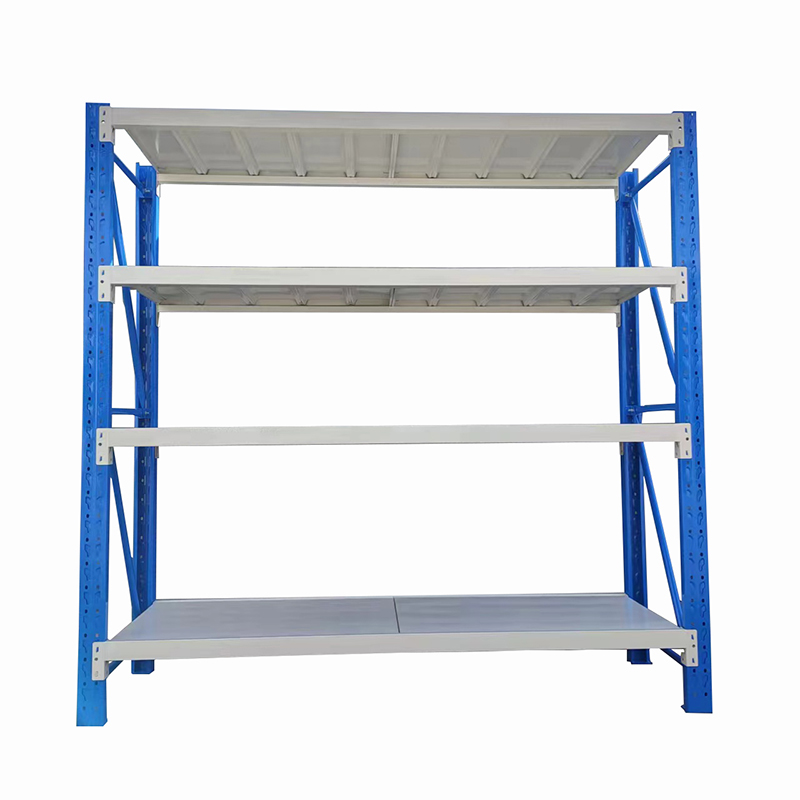

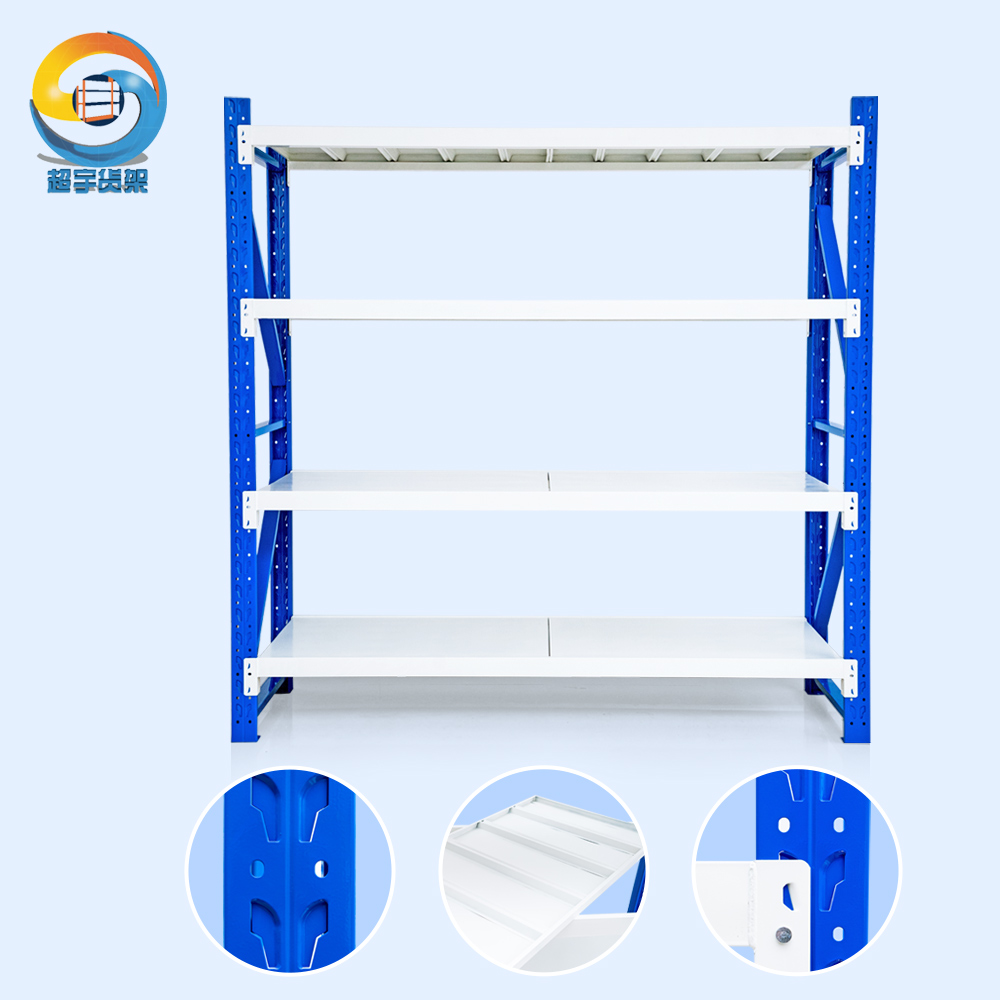

Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Special cold-rolled P-shaped closed beam is used for the cross beam, which features simplicity, reliability, light weight, strong bearing capacity and low cost.
Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Laminates adopt strip laminates, which feature strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
| Description (L*W*H mm) | Upright Specification | Beam Specification | Thickness of the Shelf | Load Capacity / Layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |

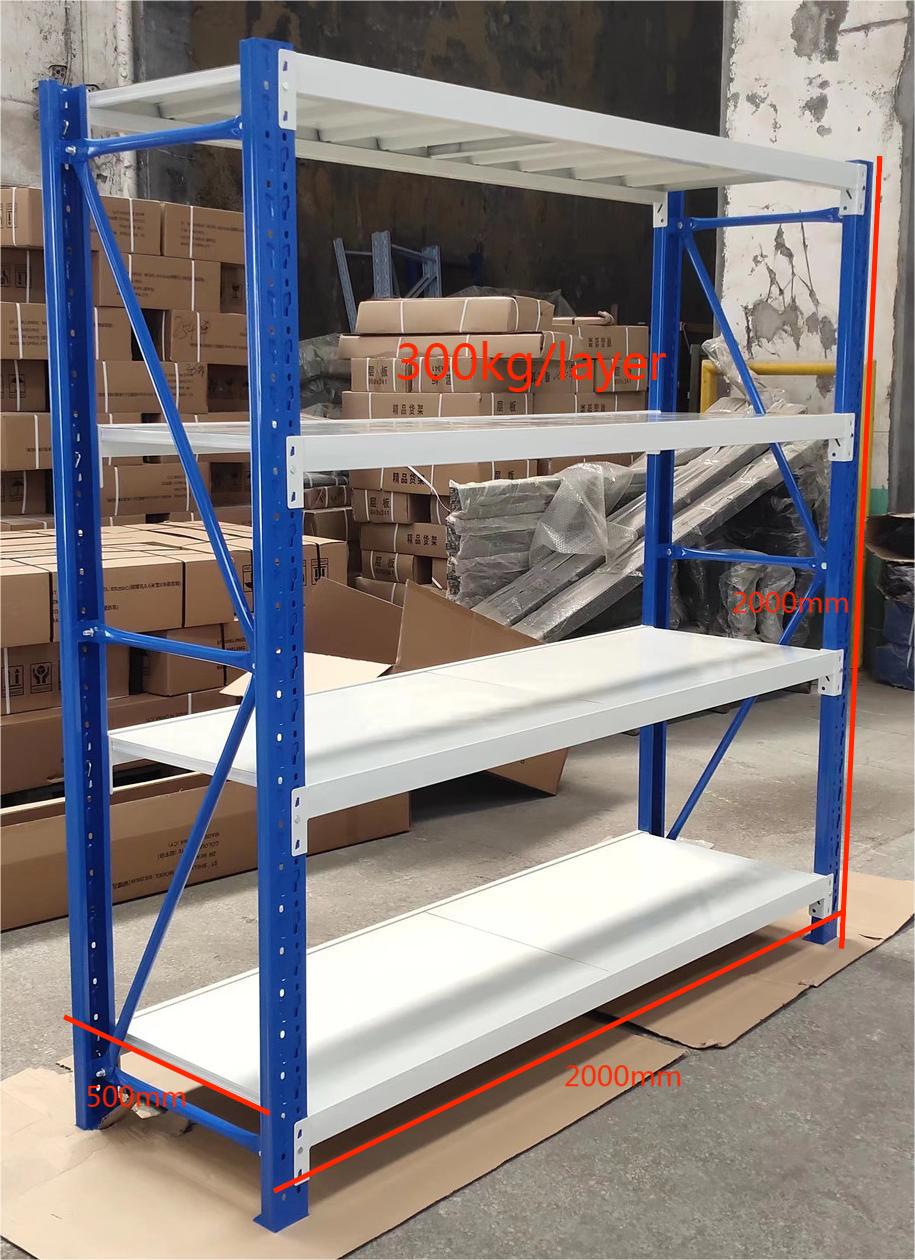

| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80.1.5mm | 0.6mm | 500kgs |
The load capacity typically ranges from 100 kg to 500 kg per layer, depending on the thickness of the shelf, the beam specifications, and the upright structural profiles selected.
Yes. We can customize the dimensions, structures, and color schemes based on your exact layout drawings, load requirements, and warehouse specifications.
This modular storage rack system is designed for quick and straightforward assembly. It is highly adjustable and virtually no specialized tools are required during the setup process.
We use a Knocked-Down (KD) structure. Inside the box, polyfoam separators are placed between every component to keep them secure. Externally, we reinforce the packaging with five-layer heavy-duty cartons, sealed with tape and packing belts.
Orders are generally shipped within 10 days, though the exact timeline may vary depending on the specific customization requirements and total order quantity.
