Upright: Combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and provides stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for the cross beam, which features simplicity, reliability, light weight, strong bearing capacity, and low cost.

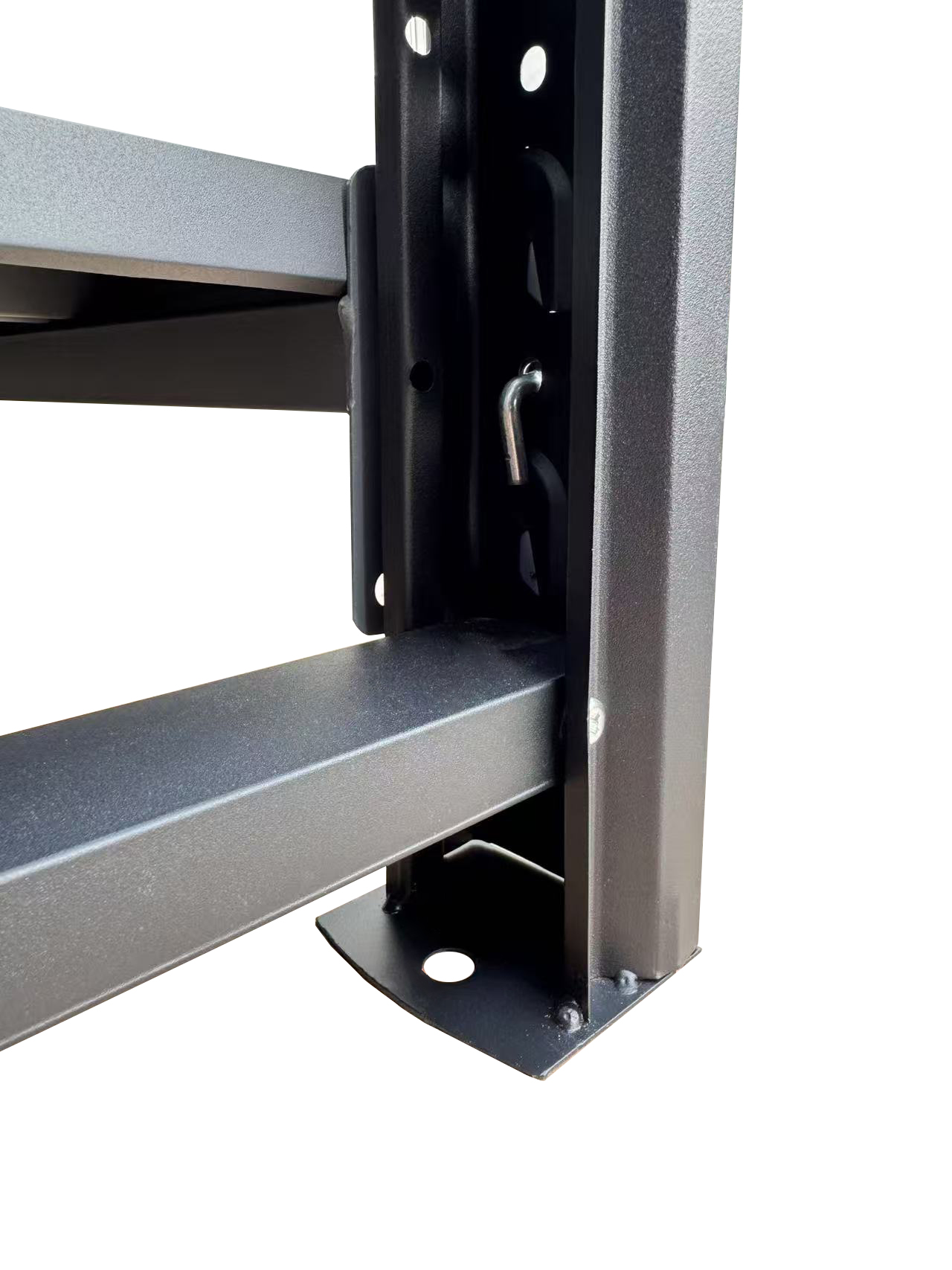

Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.

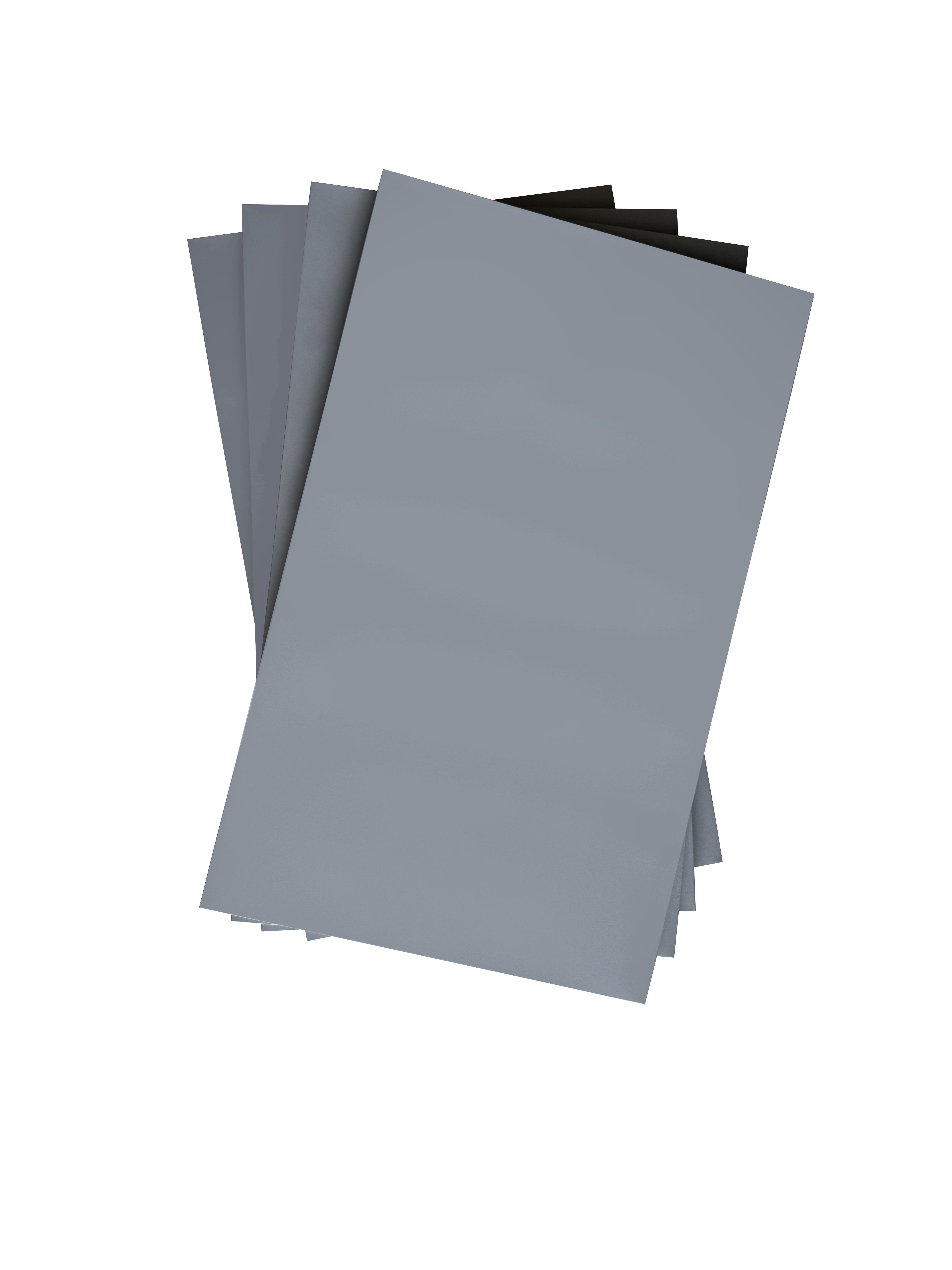

Shelf: Laminates adopt strip laminates, which feature strong bearing capacity, wear resistance, simple replacement, and low maintenance cost.
| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3. Can print LOGO or shipping mark as the customer want.
4. Each product has a detailed installation instruction.
Shipping: By Sea, By Air, By international Express.
Delivery Date: Within 10 days or according to your order quantity.
