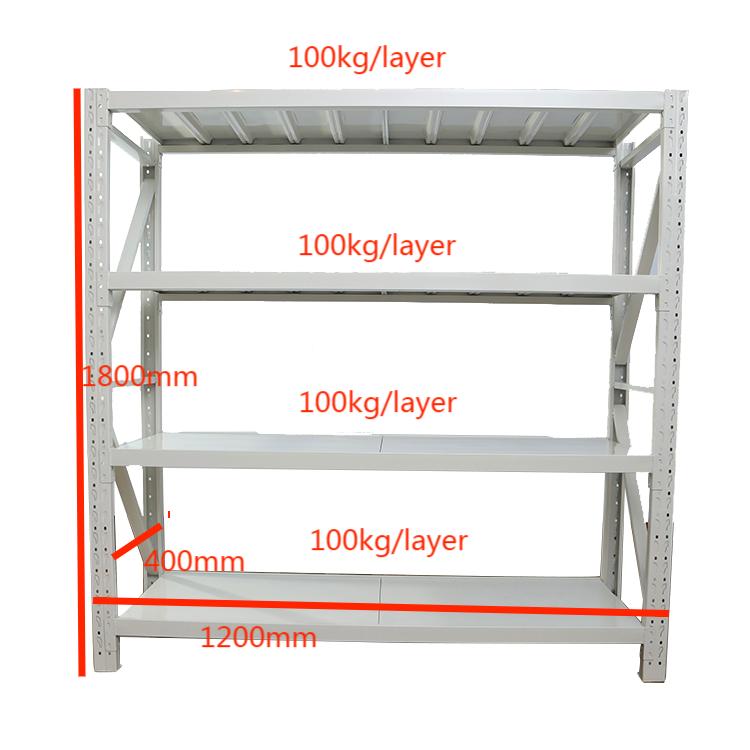

| Description | Upright Specification | Beam Specification | Thickness of the Shelf | Load Capacity/Layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |
More racking sizes and specifications are available upon request.
Upright: Combined with horizontal bracing, diagonal bracing, and bayonets. This structure is highly convenient to install and offers stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for the cross beam, featuring simplicity, reliability, light weight, strong bearing capacity, and low cost.
Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made with advanced production standards, featuring strong bearing capacity, wear resistance, simple replacement, and low maintenance cost.
We are one of the leading racking suppliers in China. We provide shelving systems for any environment and racking systems for warehouses for all types of loads. We dedicate ourselves to providing quality racking systems at competitive prices.
Our main products are as follows:
Yes, we are a professional manufacturer for steel furniture and racking systems.
The material is standard cold-rolled steel plate. Electrostatic Powder Coating Surface prevents rust. Our range includes all kinds of steel office furniture, steel cabinets, mobile shelving, locker wardrobes, bunk beds, and warehouse racks.
Yes, we offer custom-made services to our clients. You need to provide us with some technical data such as dimensions and drawings.
Our process is: Raw material - QC - cutting - pressing - bending - welding - QC - Phosphating - powder painting - QC - packing.
We use polyfoam + 5-layer corrugated carton. For LCL and samples, we use plywood cases to reinforce and avoid damage during transportation.
Yes, there are assembly instructions included in each carton. If needed, you can also receive our assembly instruction videos.
