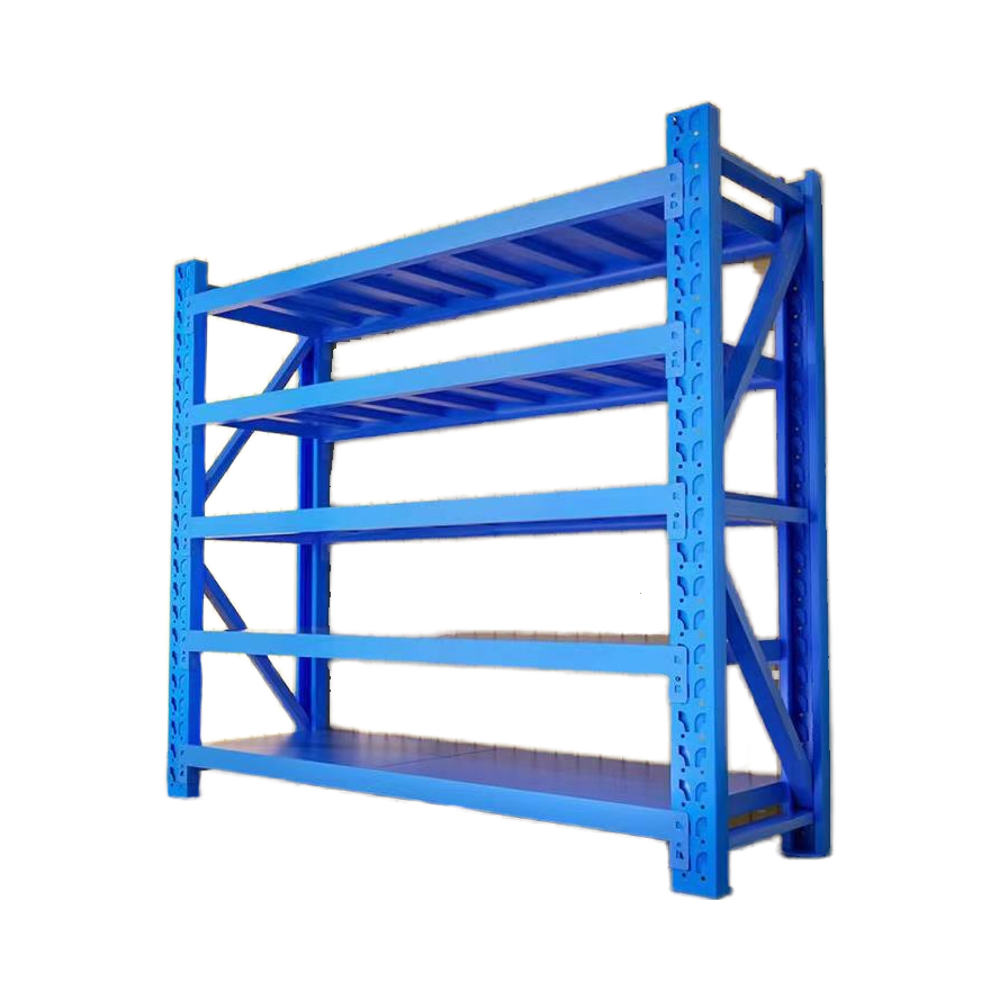

Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
1 / 5
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse
Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse

Factory Medium Duty 5 Layer Steel Corrosion Protected Boltless Multi-Layer Industrial Shelving Racks for Garage Warehouse

Send Inquiry

Product Description

Storage Racking Banner

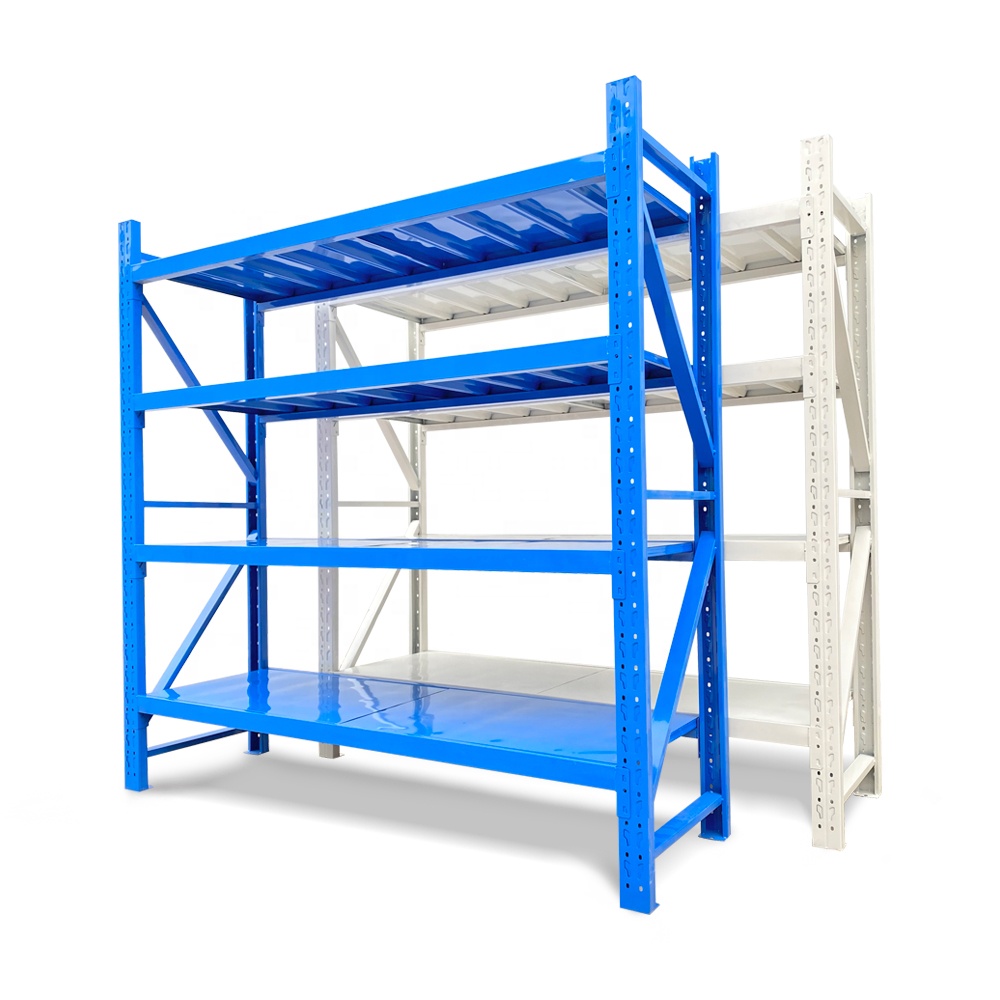

Racking System Overview
Racking Configuration Part A
Racking Configuration Part B
Storage Shelves Details 1
Storage Shelves Details 2
Storage Shelves Details 3
Storage Shelves Details 4

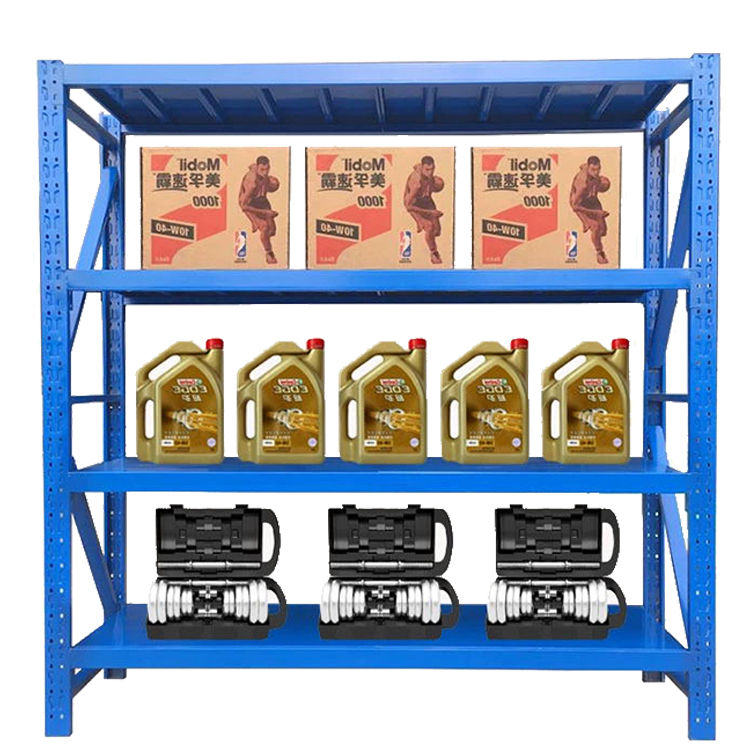

Racking Application Showcase 1
Racking Application Showcase 2
Racking Application Showcase 3
Warehouse Storage Solution

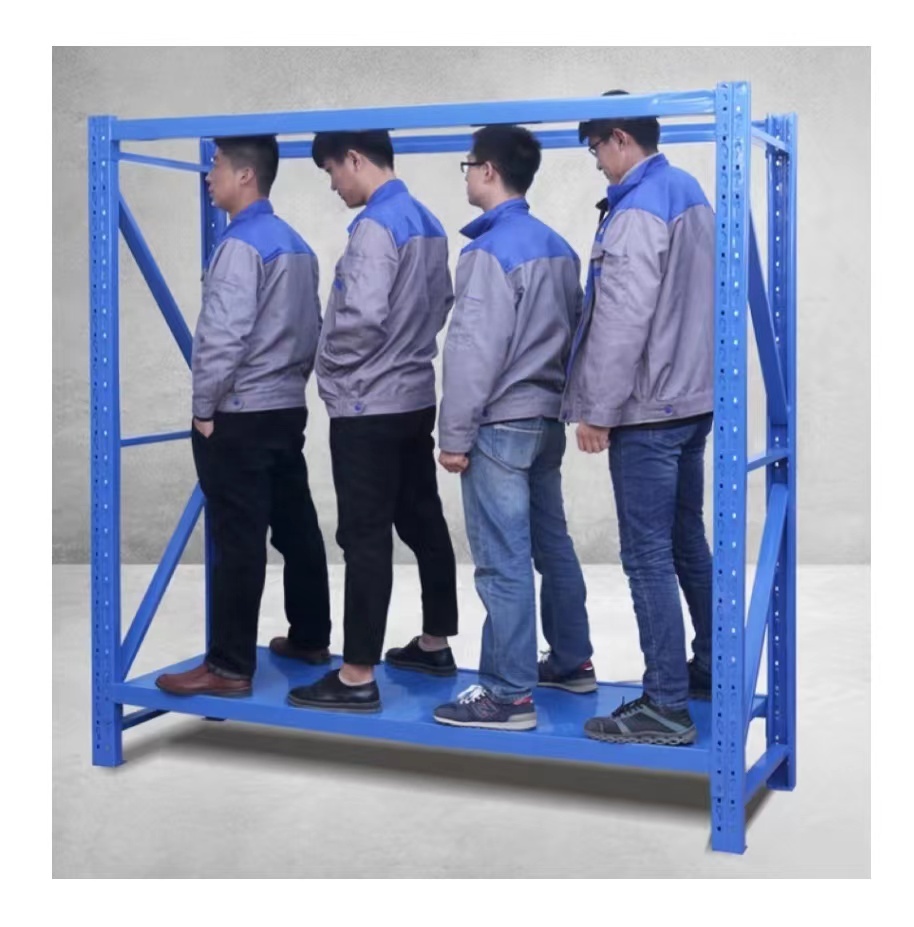

Load Capacity Test
Racking Design Blueprint 1
Racking Design Blueprint 2
Product Structural Details

Details Section 1

Upright Structure: Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Beam Design: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.

Details Section 2

Connector Safety: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf Durability: Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
Structural Node Display
Key Features
  • Affordable and modular manual storage system for small goods
  • Quick and easy to assemble, extend and adjust—virtually no tools required
  • Available in standard frame widths of 1200mm, 1500mm, and 2000 mm, and depths varying from 400 to 600 mm
  • Wide range of accessories for various storage methods
  • Safe for employees and your products
  • Available in all blue, orange and other colors
  • Available from 200 to 500 Kg/layer
  • Number of layers: 4
  • Maintenance: Minimal maintenance required
Specifications Table
Description Size (mm) Upright Specification Beam Specification Thickness of Shelf Load Capacity / Layer
1500 * 500 * 2000 30 * 50 * 0.4mm 30 * 50 * 0.4mm 0.25mm 100 kg
2000 * 500 * 2000 30 * 50 * 0.4mm 30 * 50 * 0.4mm 0.25mm 100 kg
1500 * 600 * 2000 40 * 80 * 0.7mm 40 * 60 * 0.7mm 0.30mm 200 kg
2000 * 600 * 2000 40 * 80 * 0.7mm 40 * 60 * 0.7mm 0.30mm 200 kg
1500 * 600 * 2000 40 * 80 * 0.8mm 40 * 60 * 0.7mm 0.35mm 300 kg
2000 * 600 * 2000 40 * 80 * 0.8mm 40 * 60 * 0.7mm 0.35mm 300 kg
1500 * 600 * 2000 40 * 80 * 1.0mm 40 * 60 * 1.0mm 0.50mm 400 kg
2000 * 600 * 2000 40 * 80 * 1.0mm 40 * 60 * 1.0mm 0.50mm 400 kg
2000 * 600 * 2000 40 * 80 * 1.1mm 50 * 80 * 1.5mm 0.60mm 500 kg
More racking sizes and custom specifications are available upon request.
Production Process Line
Product Categorization Overview
Quality Standard Certificate
Material Raw Prep
Facility Standard View
Precision Punching Machine
Powder Coating Line
Packaging Preparation Stage
Packaging & Shipping Details

Packaging Structure

  • KD (Knock-Down) structure, polyfoam between every part, packed in an orderly and logical configuration to prevent shaking.
  • Outer layers consist of five layers of strong carton, sealed with tape, and reinforced with packing belts.
  • Custom prints for LOGO or shipping marks can be applied according to customer requirements.
  • Each product package contains a detailed set of installation instructions.

Shipping & Delivery

We offer multiple transit methodologies to suit your timeframe and budget:

  • By Sea Freight (for large-scale orders)
  • By Air Freight (for fast transit requirements)
  • By International Express

Delivery Timeline: Dispatched within 10 days or custom scheduled based on order quantity.

Storage Solutions Loading Area
Container Packing Setup
Quality Inspection A
Quality Inspection B
Warehouse Assembly Test
Finished Product Display
Logistics Transit Setup
Frequently Asked Questions
What are the standard sizes available for the racking system?
The racking is available in standard width options of 1200mm, 1500mm, and 2000mm. Depths range from 400mm to 600mm, and the standard height is 2000mm. Customized dimensions can be manufactured based on project requirements.
What is the load capacity per shelf layer?
Depending on the thickness configuration of the upright and cross-beams selected, the weight load capacity ranges from 100 kg up to 500 kg per layer.
Is the assembly process complicated, and are tools required?
No, the racking system features a modular KD (knock-down) structure designed for simple manual assembly. It is quick to install, expand, or adjust with virtually no specialized tools needed. Detailed instructions are included with every package.
How are safety and stability ensured?
Each beam connection point is equipped with a specially designed safety pin that prevents accidental dislodging caused by external impact or operational machinery. The upright uses premium cold-rolled steel integrated with sturdy bracing.
What are the delivery terms and scheduling timelines?
Orders are typically processed and dispatched within 10 days, depending on the quantity and configuration. We offer shipping flexibility through sea freight, air freight, and international express services.
