Heavy-Duty Gondola Shelves Unit Double-Sided Fashionable Display Rack for Supermarket Made Durable Metallic Grocery Store
1 / 5
Heavy-Duty Gondola Shelves Unit Double-Sided Fashionable Display Rack for Supermarket Made Durable Metallic Grocery Store
Fashionable Grocery Store Shelves Gondola Shelves Unit for Supermarket Display Rack
Product Specifications
Product Parameters & Options
Product Name
Hot sale Light Duty Supermarket display shelf grocery racks high load capacity racking system

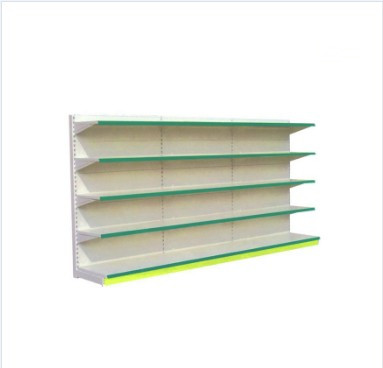

Single sided (5 layers)
900*400*1950 mm / 900*400*2250 mm

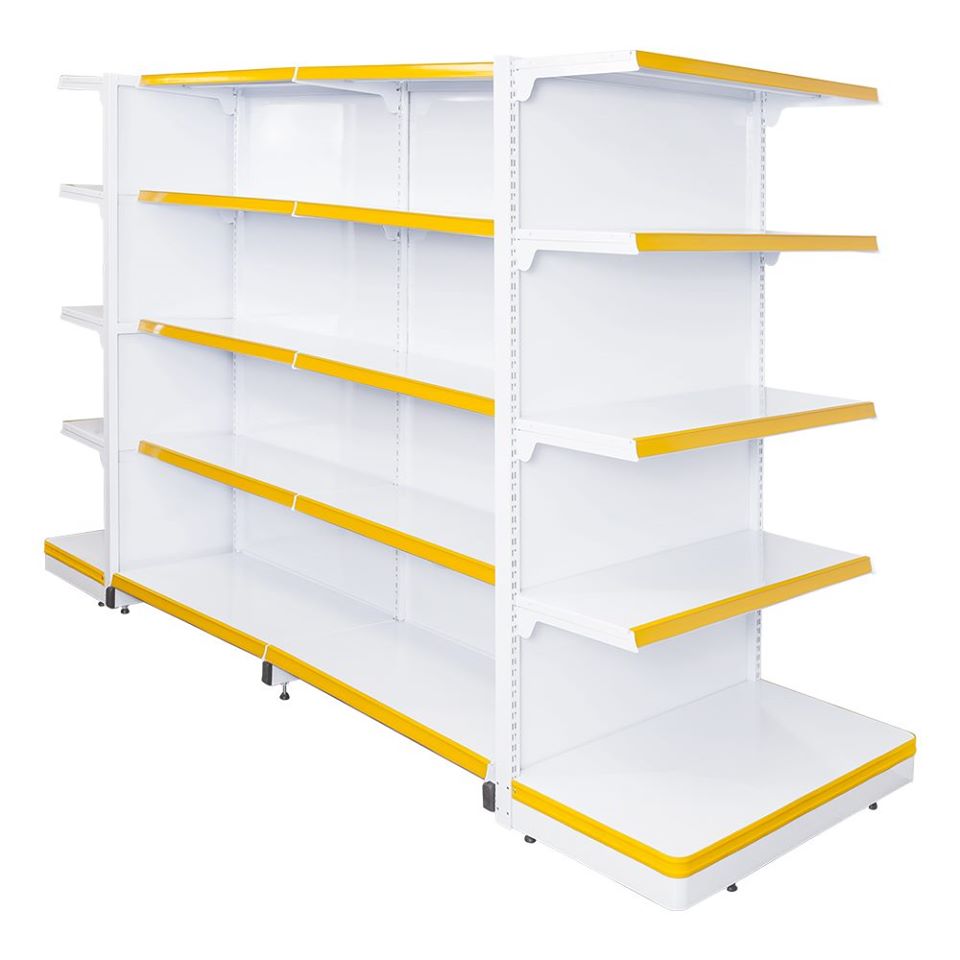

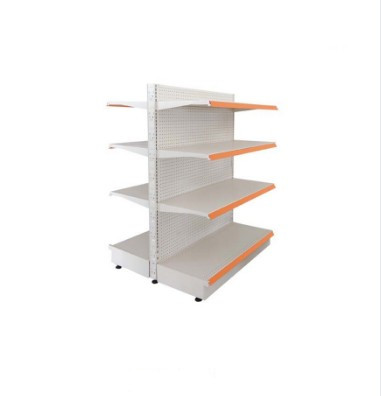

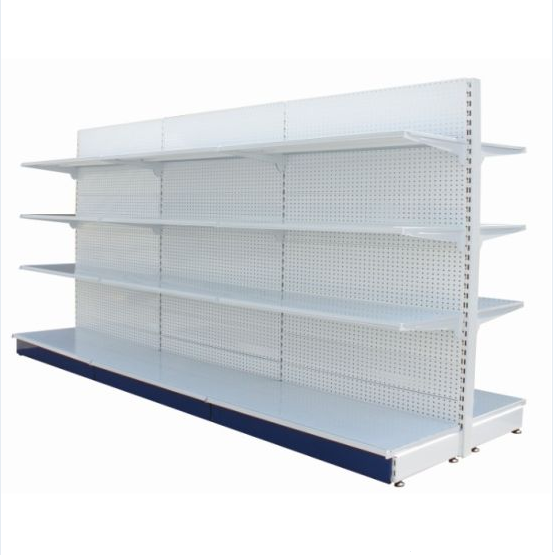

Double sided (4 layers)
900*700*1350 mm / 900*700*1650 mm

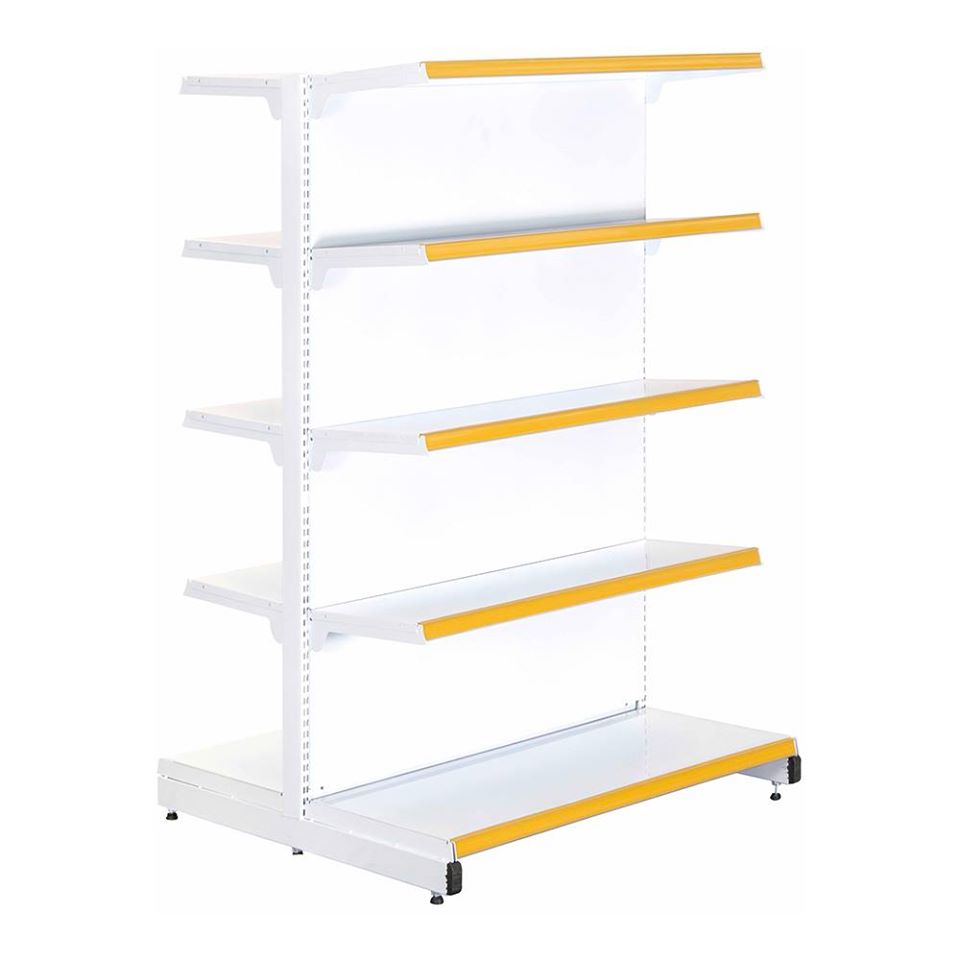

End unit (4 layers)
700*400*1350 mm / 700*400*1650 mm
Upright (mm)
30*60 / 30*70 / 30*80 / 40*60 / 40*80
Shelves Thickness (mm)
T: 0.5-0.8 mm
Back Panel (mm)
T: 0.4-0.8 mm
Bracket (mm)
T: 1.5-3.0 mm
Shelf bearing capacity
50-200 kgs/layer
Shelf sample time
About 7 to 10 working days
Shelf usage
Supermarket, Storage, Shops
Details
Upright: Combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
Packaging Details
KD Structure: Polyfoam placed between every part, packed in an orderly and reasonable arrangement to prevent shaking.
Outer Carton: 5-layer strong export carton with tape sealing and packing belt reinforcement.
Logo & Marks: Customized shipping marks or printed logos can be arranged based on client requirements.
Instructions: Detailed installation instructions sheet included with each product unit.
Shipping Methods: Available by Sea, Air, or International Express.
Delivery Date: Shipped within 10 days or customized according to exact order quantities.
Frequently Asked Questions (FAQ)
What is the load capacity of these supermarket display shelves?
The shelf bearing capacity ranges from 50kg to 200kg per layer, depending on the structure, upright configuration, and customization requirements selected.
What are the standard sizes available for the gondola shelf units?
Standard sizes include 900*400*1950 mm or 900*400*2250 mm for single-sided units, 900*700*1350 mm or 900*700*1650 mm for double-sided units, and 700*400*1350 mm or 700*400*1650 mm for end units.
What material thickness parameters are used in manufacturing?
The shelves feature a thickness (T) of 0.5-0.8 mm, the back panels are 0.4-0.8 mm, and the supporting brackets have a thickness range of 1.5-3.0 mm to guarantee structural integrity.
How long does it take to produce a shelf sample?
For standard designs, sample production and prep time take approximately 7 to 10 working days.
How are the racking systems packed for shipping?
They are packaged in a KD (knock-down) structure with polyfoam padding between parts. The outer layer consists of a robust 5-layer export carton wrapped with packing belts to resist shaking and damage during transit.
Is assembly difficult, and are instructions provided?
No, the structure is designed for simple assembly. Each shipped unit comes with detailed installation instructions to guide you through setting up the uprights, beams, and shelf connectors easily.
