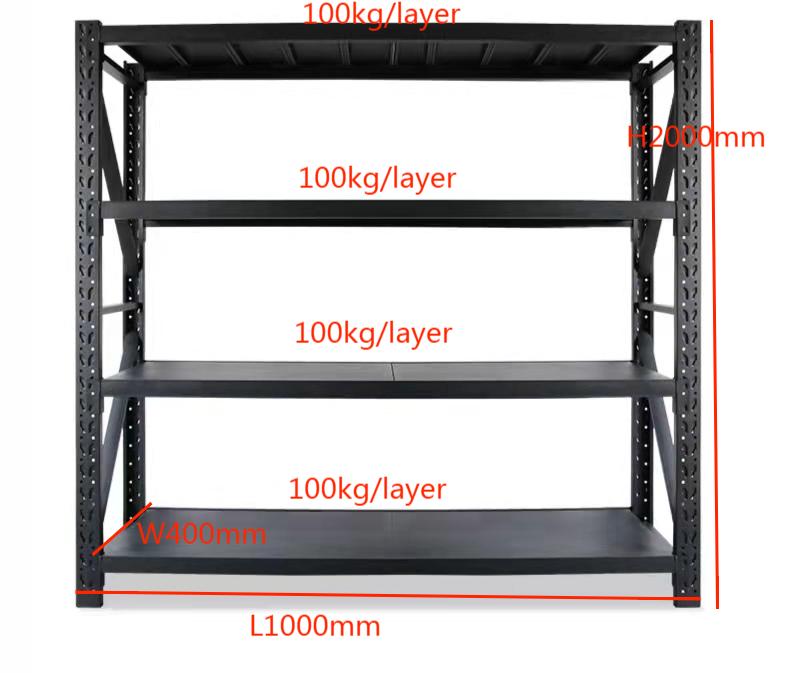

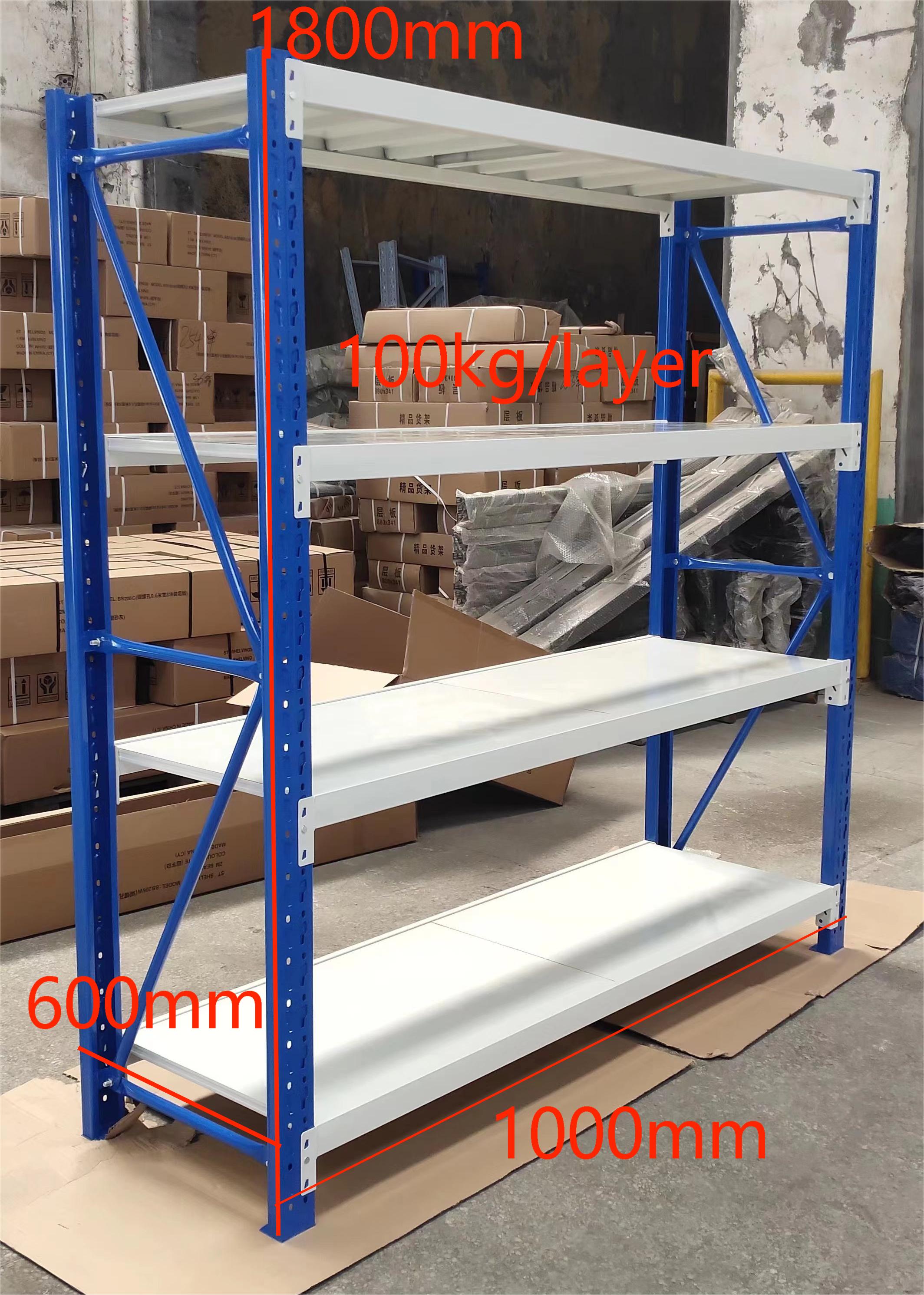

2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
1 / 5
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf

2023 New Style Assembled/welded Column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf

Send Inquiry

Product Description

Assembled/welded column Storage Racks Beam Shelf High Repurchase Rate Warehouse Storage Shelf
Warehouse Storage Rack Design 1
Warehouse Storage Rack Design 2
Warehouse Storage Rack Design 3
Technical Specifications
Description Upright Specification Beam Specification Thickness of the shelf Load capacity/layer
1500*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
2000*500*2000 30*50*0.4mm 30*50*0.4mm 0.25mm 100kgs
1500*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
2000*600*2000 40*80*0.7mm 40*60*0.7mm 0.3mm 200kgs
1500*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
2000*600*2000 40*80*0.8mm 40*60*0.7mm 0.35mm 300kgs
1500*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.0mm 40*60*1.0mm 0.5mm 400kgs
2000*600*2000 40*80*1.1mm 50*80.1.5mm 0.6mm 500kgs
Structure Detail Image

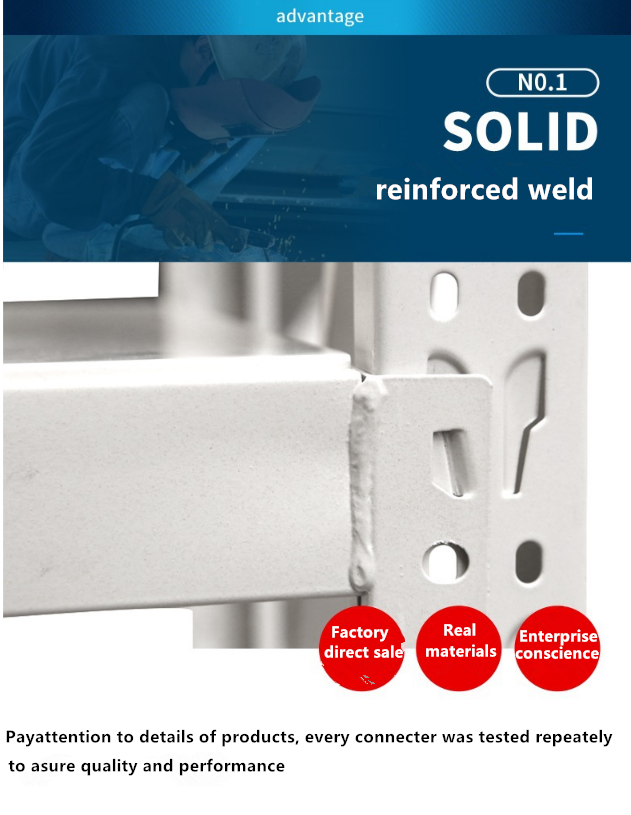

Engineering View 1

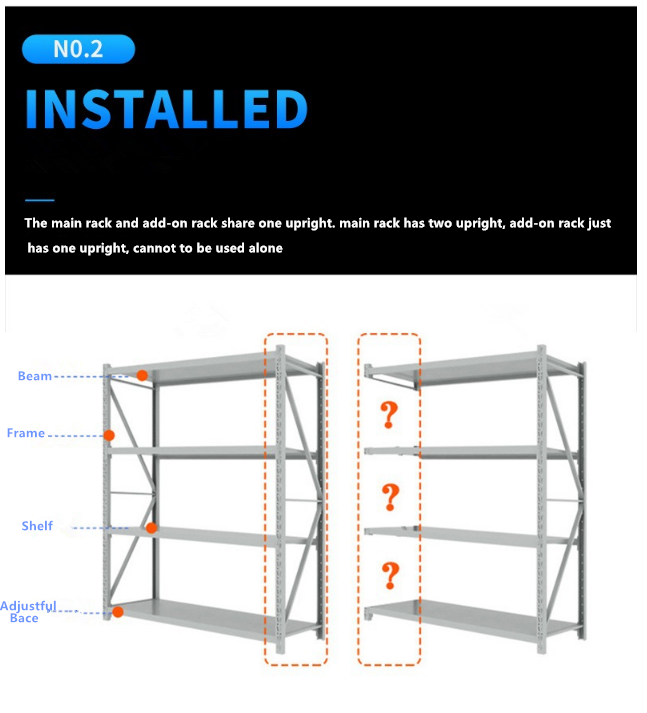

Engineering View 2
Product Structural Details
Upright: Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.
Detail Close Up 1
Detail Close Up 2
Detail Close Up 3
Additional Product View 1
Additional Product View 2
Logistics, Packing & Shipping
Packing
Product Packaging Process
  1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
  2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
  3. Can print LOGO or shipping mark as the customer want.
Shipping
Shipping Options and Logistics

Options Available:

  • By Sea
  • By Air
  • By International Express

Delivery Date within 10 days or according to your order quantity.

Warehouse Installation Showcase 1
Warehouse Installation Showcase 2
Warehouse Installation Showcase 3
Racking Load Test Showcase
Finished Warehouse Storage Setup
Frequently Asked Questions
1. What is the standard structure of these storage racks?
These warehouse storage racks feature an assembled/welded KD (Knock-Down) column structure. The upright frame is configured with horizontal bracing, diagonal bracing, and a secure bayonet connection for easy installation and enhanced structural stability.
2. What load capacities are available per shelf layer?
The load capacity ranges from 100 kg to 500 kg per layer, depending on the thickness of the shelf laminates (ranging from 0.25mm to 0.6mm) and the specific dimensions of the upright and beam structures selected.
3. Are the safety pins included for cross-beam installation?
Yes, each column clamp connection is equipped with a specially designed safety pin. This ensures that the cross beams remain securely locked to the uprights, preventing accidental dislodgement caused by forklift impact or external force.
4. What materials are used for the uprights, beams, and shelves?
The system utilizes premium cold-rolled P-shaped closed steel profiles for the cross beams and high-strength industrial-grade steel for the upright frames and laminates. This layout guarantees wear resistance, high structural load capacities, and minimal maintenance costs.
5. How is the product packed to prevent transit damage?
We utilize a secure KD packaging system with high-density polyfoam protective layers between every component. The entire unit is enclosed in a heavy-duty five-layer corrugated carton, which is further reinforced with industrial sealing tape and packing belts.

Related Products

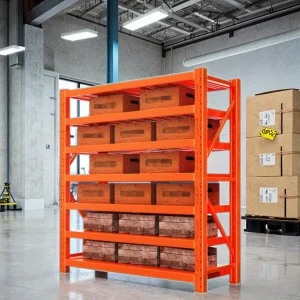

Chaoyu Metallic Double-sided Heavy Duty Medium-sized Storage Shelves for Underground Garage with Removable Racks and Display
