| Specification Feature | Product Details | ||||
|---|---|---|---|---|---|
| Product Name | Hot sale Light Duty Supermarket display shelf grocery racks high load capacity racking system | ||||
| Model Type | Standard Size (mm) | Upright (mm) | Shelves | Back Panel (mm) | Bracket (mm) |

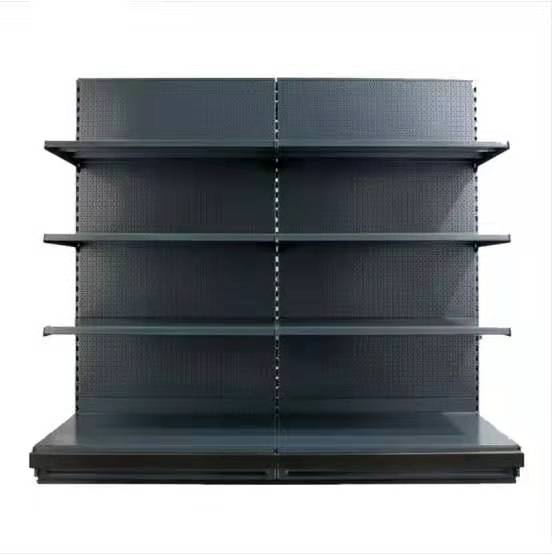

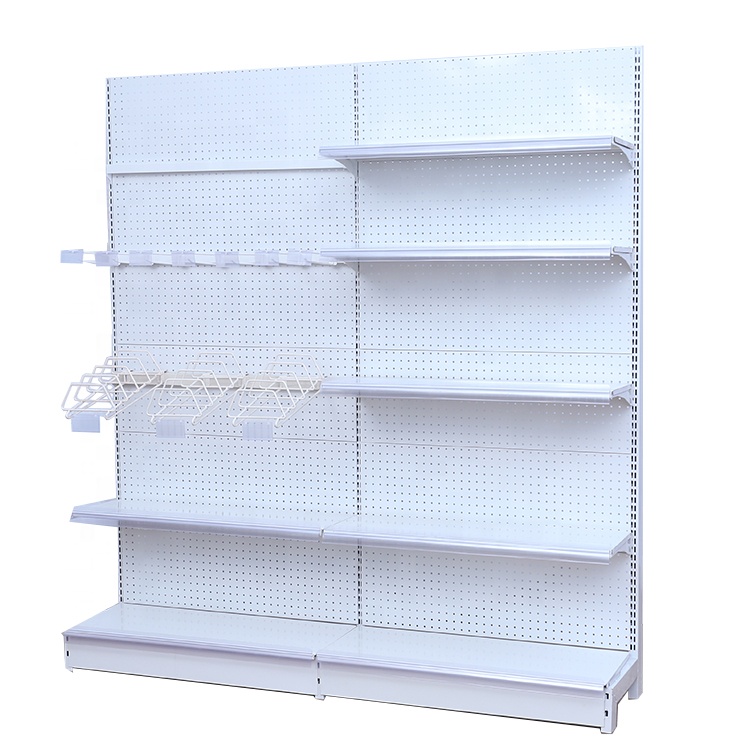

| Single sided (5 layers) | 900*400*1950 900*400*2250 |
30*60 30*70 30*80 40*60 40*80 |
T: 0.5-0.8 | T: 0.4-0.8 | T: 1.5-3.0 |

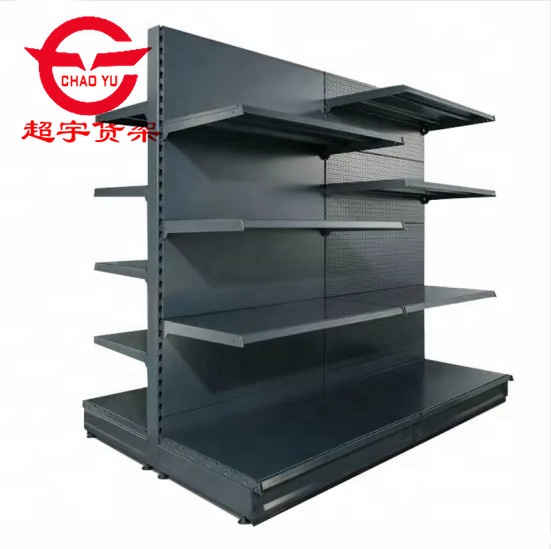

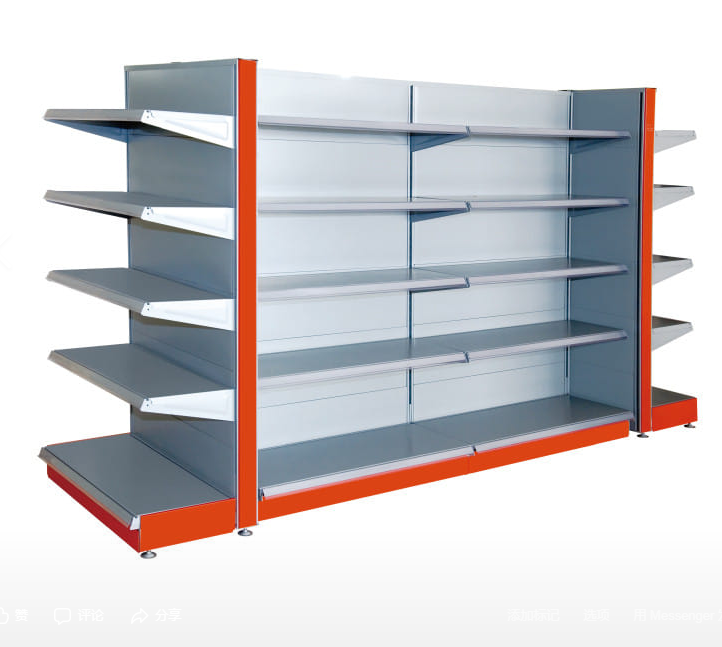

| Double sided (4 layers) | 900*700*1350 900*700*1650 |
||||
| End unit (4 layers) | 700*400*1350 700*400*1650 |
||||
| Bearing Capacity | 50-200kgs/layer | ||||
| Sample Time | About 7 to 10 working days | ||||
| Shelf Usage | Supermarket, Storage, Shops | ||||
Combined with horizontal bracing, diagonal bracing, and bayonets. This optimal structure is highly convenient to install and offers robust, durable supporting power.
Special cold-rolled P-shaped closed beam is utilized as the cross beam. Features simple installation, high reliability, light overall weight, and exceptionally strong bearing capacity at a low cost.

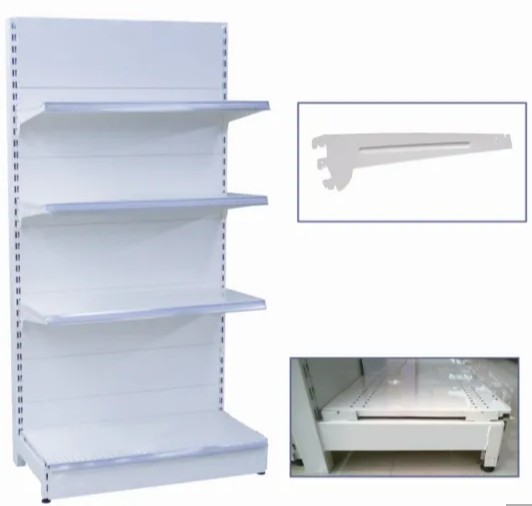

Equipped with a specially designed safety pin to connect the column clamp with the column securely. This mechanism ensures that the beam stays in place under heavy external forces.
Laminates adopt world-standard strip laminates, providing high wear resistance, excellent load performance, simple part replacement, and very low maintenance cost.
Yes. Our display shelves can be customized completely in any sizing parameters, load capacity types, and color finishes to perfectly match your store space requirements.
The standard load-bearing capacity ranges between 50 kg to 200 kg per layer, depending on the structure, upright thicknesses, and the exact model configured.
Typical sample processing and design output times take approximately 7 to 10 working days from the moment drawing specs are locked in.
Our shelving systems utilize a specialized safety connector pin. When the column clamp is connected, it locks in place to prevent the beams from dislodging under unexpected external impacts.
All units are packed using a KD structure. High-density polyfoam is placed between parts, which are then stored in 5-layer strong cartons wrapped with reinforce packaging belts to minimize movement.
We ship worldwide by Sea, Air, or International Express. Delivery typically takes place within 10 days, depending on final order quantity and custom specifications.
