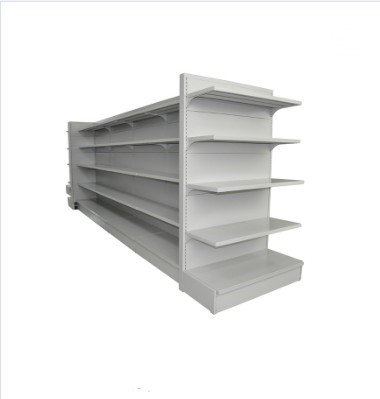

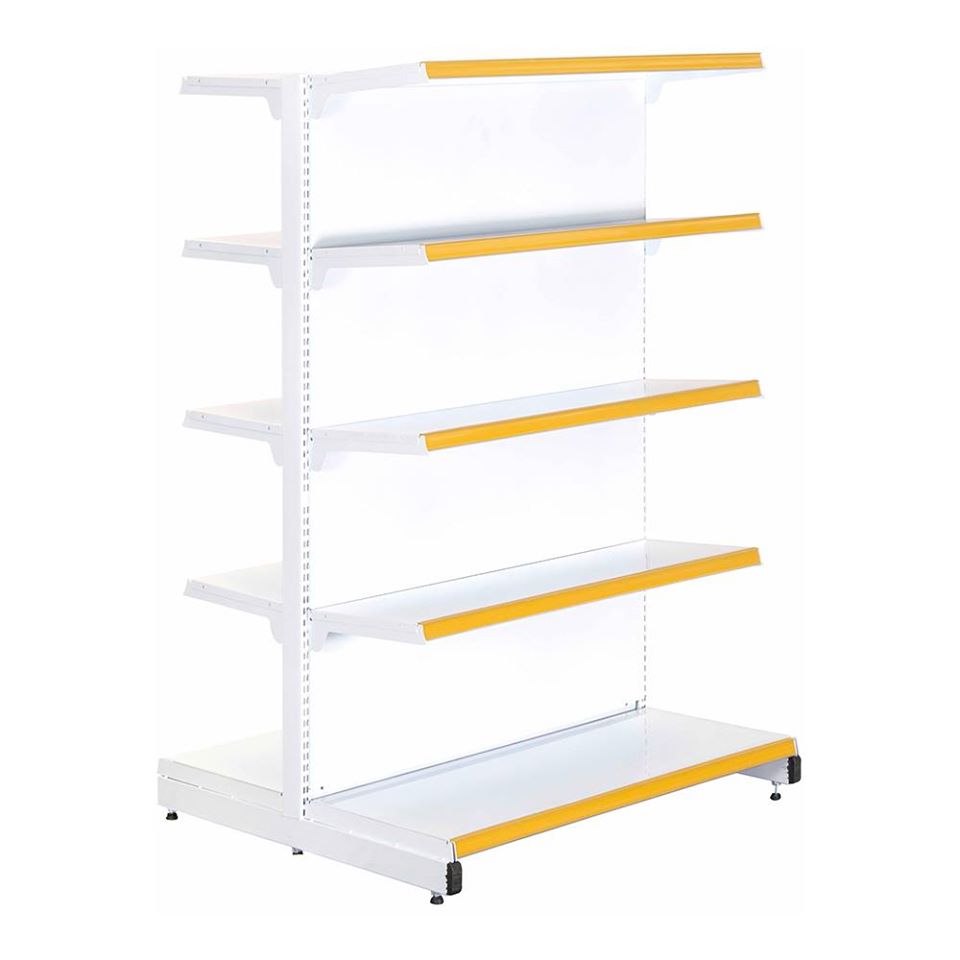

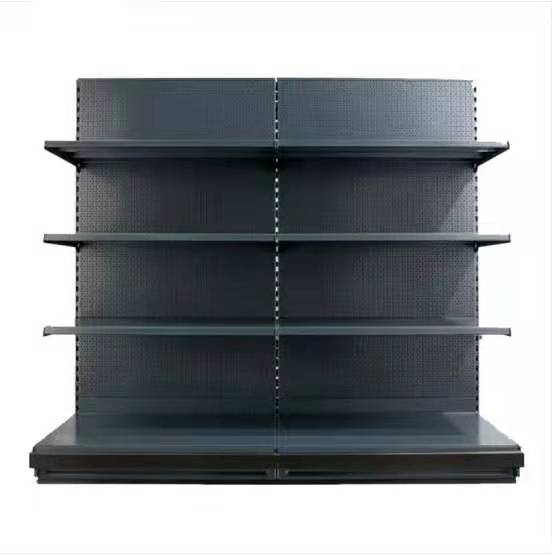

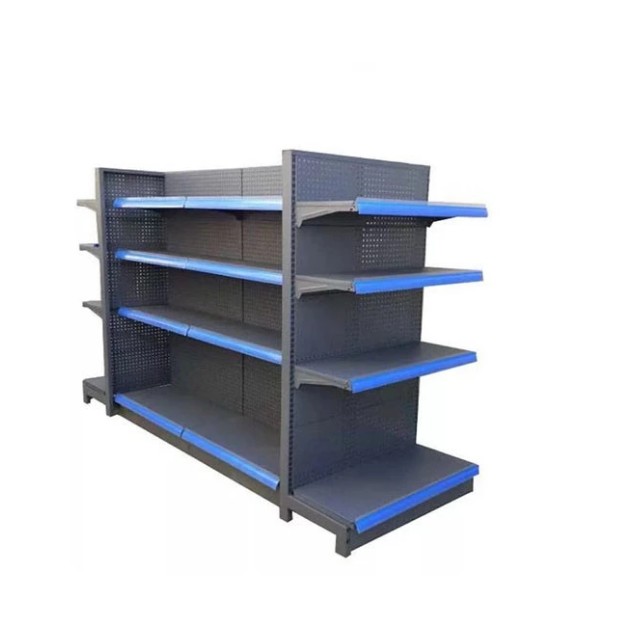

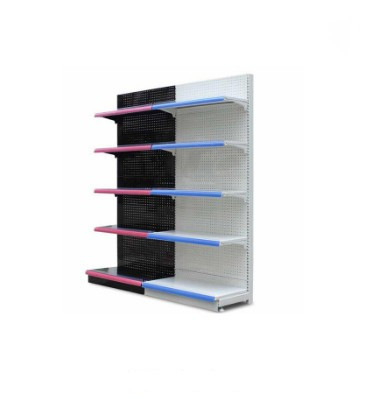

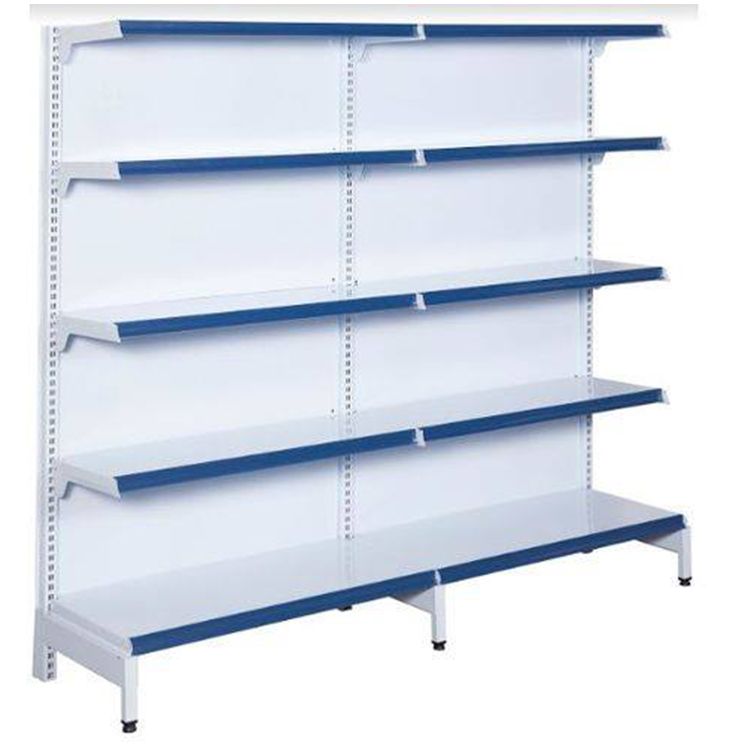

Customized Supermarket Rack Retail Display Shop Shelf Metal Gondola Store Shelving

1 / 5

Customized Supermarket Rack Retail Display Shop Shelf Metal Gondola Store Shelving

Send Inquiry

Product Description

Can be customized in any size type and color supermarket shelves!!

Product Specification Details
Product Name	Hot sale Light Duty Supermarket display shelf grocery racks high load capacity racking system

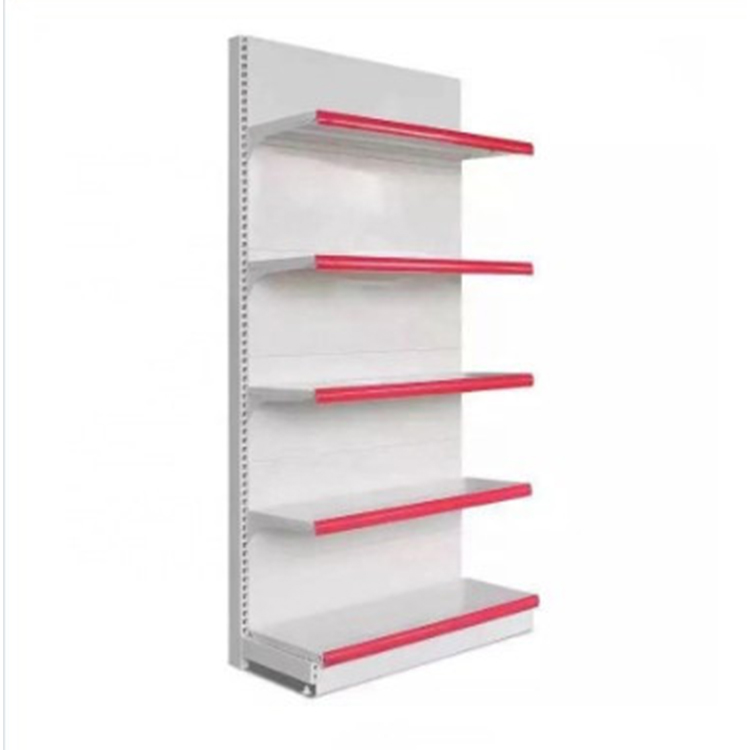

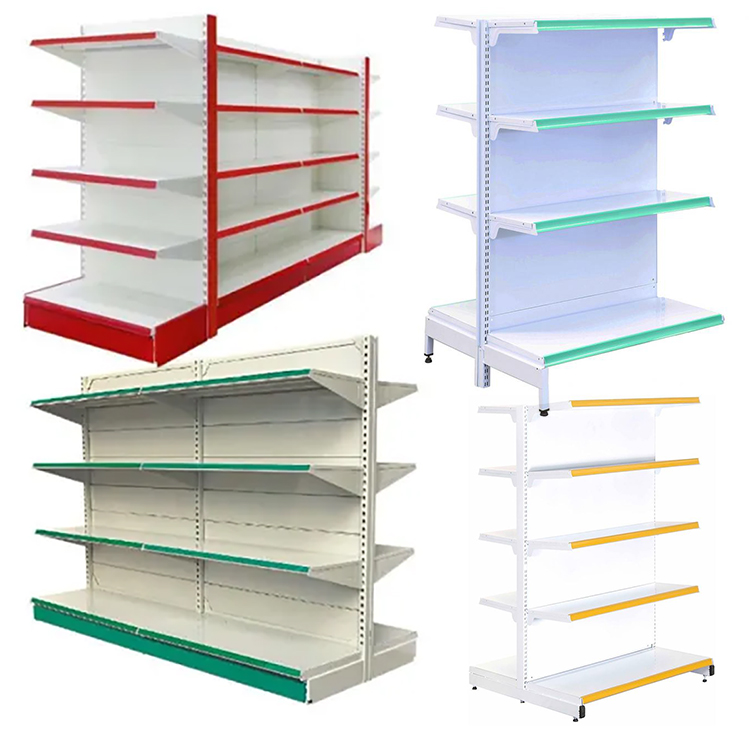

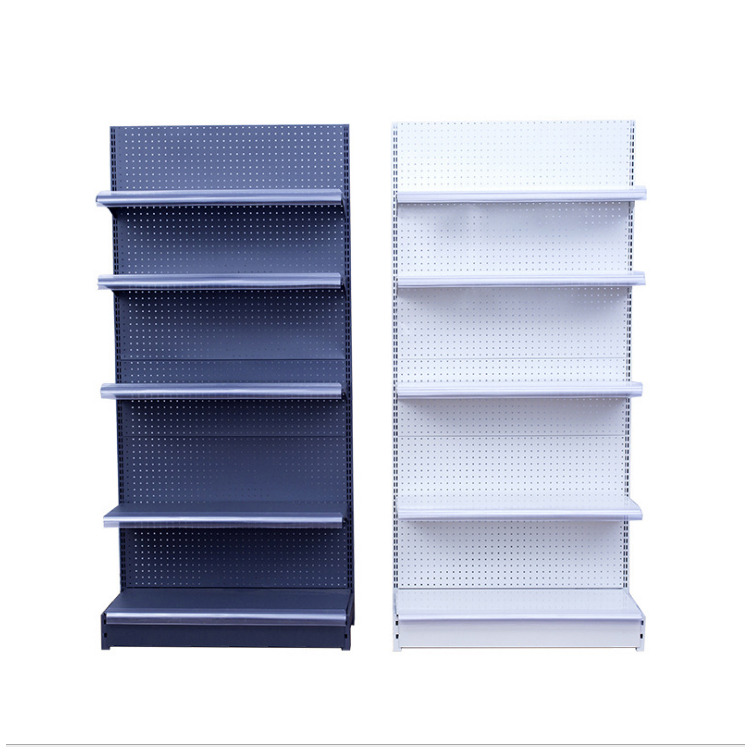

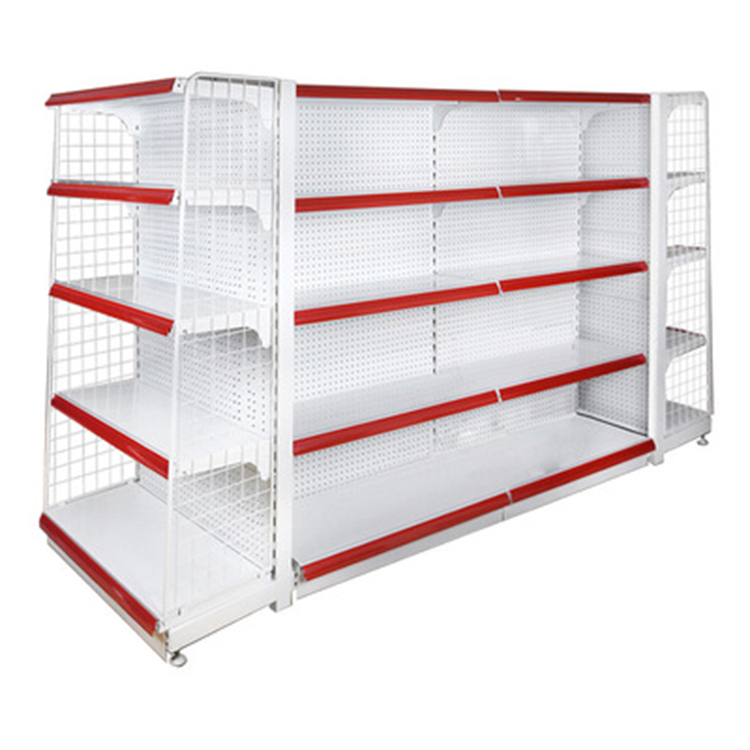

Model Options	• Single sided (5 layers) • Double sided (4 layers) • End unit (4 layers)
Standard Size (mm)	• Single sided: 9004001950 / 9004002250 • Double sided: 9007001350 / 9007001650 • End unit: 7004001350 / 7004001650
Upright Specifications (mm)	3060 / 3070 / 3080 / 4060 / 40*80
Shelves Thickness (mm)	T: 0.5 - 0.8
Back Panel (mm)	T: 0.4 - 0.8

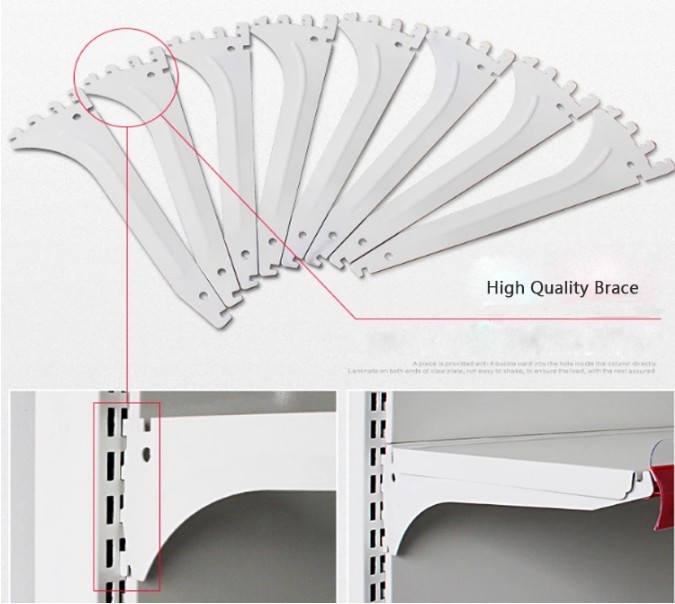

Bracket (mm)	T: 1.5 - 3.0
Shelf Bearing Capacity	50 - 200 kgs / layer
Shelf Sample Time	About 7 to 10 working days
Shelf Usage	Supermarket, Storage, Shops

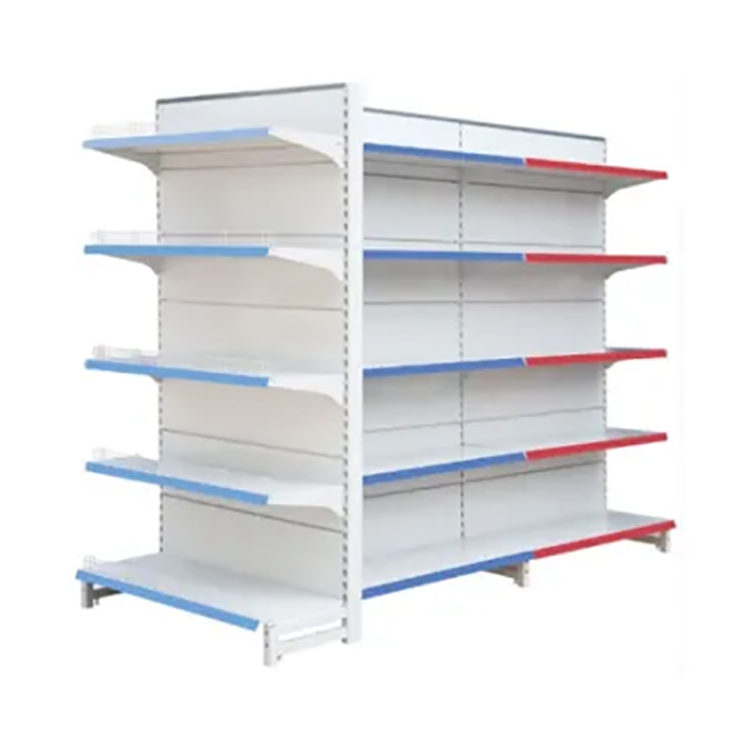

Supermarket design specifications drawing

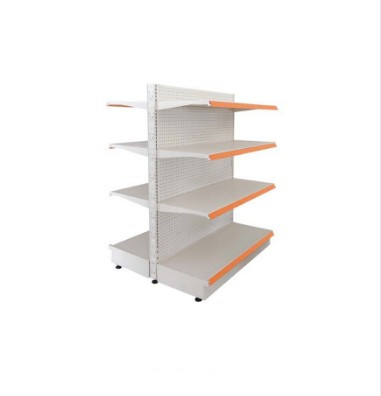

Product Structural Details

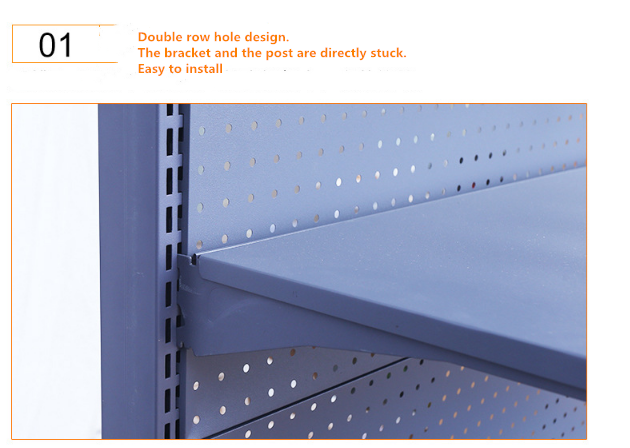

Upright

Upright is combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and provides much stronger supporting power.

Beam

Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.

Connector

Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.

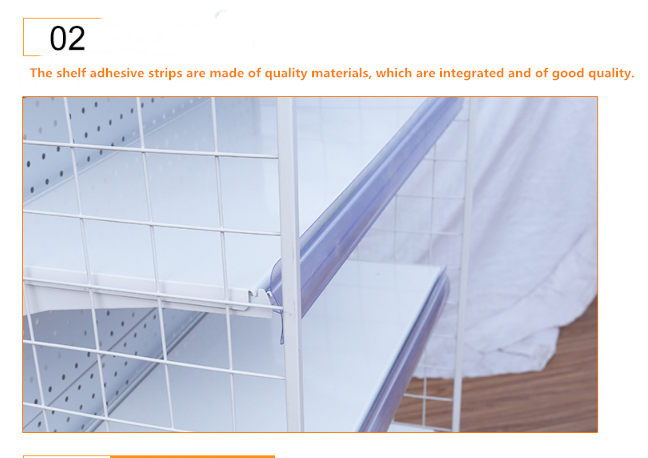

Shelf

Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement and low maintenance cost.

Supermarket checkout counter category range

Packaging & Shipping Details

KD Structure: Knock-down design structure, polyfoam insert placed between every part. Highly organized and compact packing method to prevent shaking and damage during transit.
Heavy-Duty Outer Carton: Secured using five-layer high-strength corrugated export cartons, reinforced with industrial adhesive tape and heavy wrapping belts.
Custom Marks: Support customized layout for logo printings and customized shipping marks as requested.
Assembly Ready: Every individual product pack is equipped with highly-detailed setup and installation instructions.

Shipping Methods: Supported via Sea Freight, Air Freight, and International Express shipments.

Delivery Term: Within 10 working days, subject to the final order quantities.

Frequently Asked Questions (FAQ)

Q1: Can these supermarket shelves be customized in dimensions and colors?

Yes, we support comprehensive customization options. You can request customized dimensions (height, width, depth), specific number of layers, and distinct RAL colors to fit your retail store style.

Q2: What is the load-bearing capacity per layer of the shelving system?

Our light-duty display racks support a bearing capacity of 50kg to 200kg per layer, depending on the chosen upright thickness and bracket reinforcement.

Q3: How long does it take to produce a custom sample?

Typically, sample manufacturing takes about 7 to 10 working days after confirming design structural drawings and material specifications.

Q4: Are these shelves easy to install? Do they require special tools?

The shelves utilize a Knock-Down (KD) boltless structure. The system is extremely simple to configure and install without needing specialized heavy equipment. A detailed assembly booklet is included in every package.

Q5: How are the products protected and packaged for international export?

We pack all shelf components individually with protective polyfoam wrap in heavy-duty 5-layer corrugated cardboard boxes. Cartons are sealed and reinforced using industrial plastic strapping belts to secure items during shipping.
