| Specifications & Details | |
|---|---|
| Product Name | Hot sale Light Duty Supermarket display shelf grocery racks high load capacity racking system |
| Size Configurations |

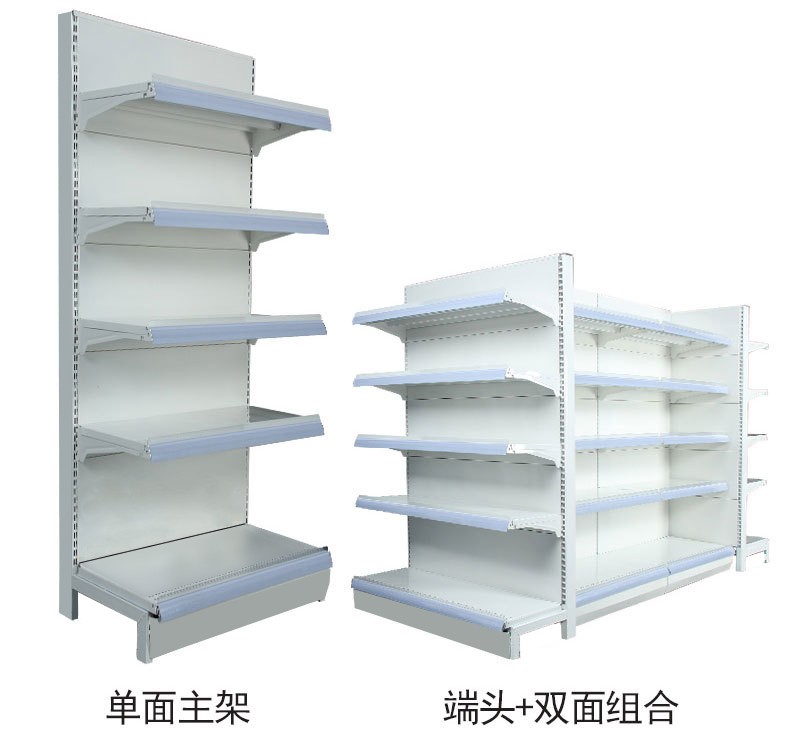

Single sided (5 layers): 900*400*1950mm / 900*400*2250mm Double sided (4 layers): 900*700*1350mm / 900*700*1650mm End unit (4 layers): 700*400*1350mm / 700*400*1650mm |
| Upright Option (mm) | 30*60 / 30*70 / 30*80 / 40*60 / 40*80 |
| Shelves Thickness (mm) | T: 0.5 - 0.8 mm |
| Back Panel Thickness (mm) | T: 0.4 - 0.8 mm |
| Bracket Thickness (mm) | T: 1.5 - 3.0 mm |
| Bearing Capacity | 50-200kgs / layer |
| Sample Lead Time | About 7 to 10 working days |
| Usage | Supermarket, Storage, Retail Shops |

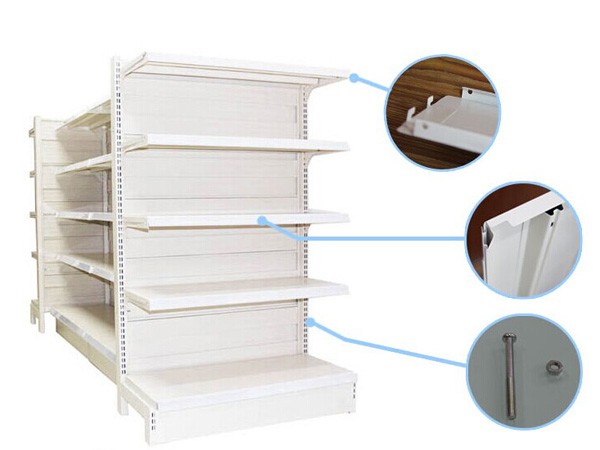

Upright is combined with horizontal bracing, diagonal bracing, and bayonet. This structure is convenient to install and features strong supporting power.
Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity, and low cost.
Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Laminates adopt strip laminates made in the world, which have the characteristics of strong bearing capacity, wear resistance, simple replacement, and low maintenance cost.
Shipping: By Sea, By Air, or by International Express.
Delivery Time: Within 10 days or depending on order quantity.
