| Parameter | Details & Specifications | ||||
|---|---|---|---|---|---|
| Product Name | Hot sale Light Duty Supermarket display shelf grocery racks high load capacity racking system | ||||
| Model | Standard Size(mm) | Upright(mm) | Shelves Thickness | Back Panel(mm) | Bracket(mm) |

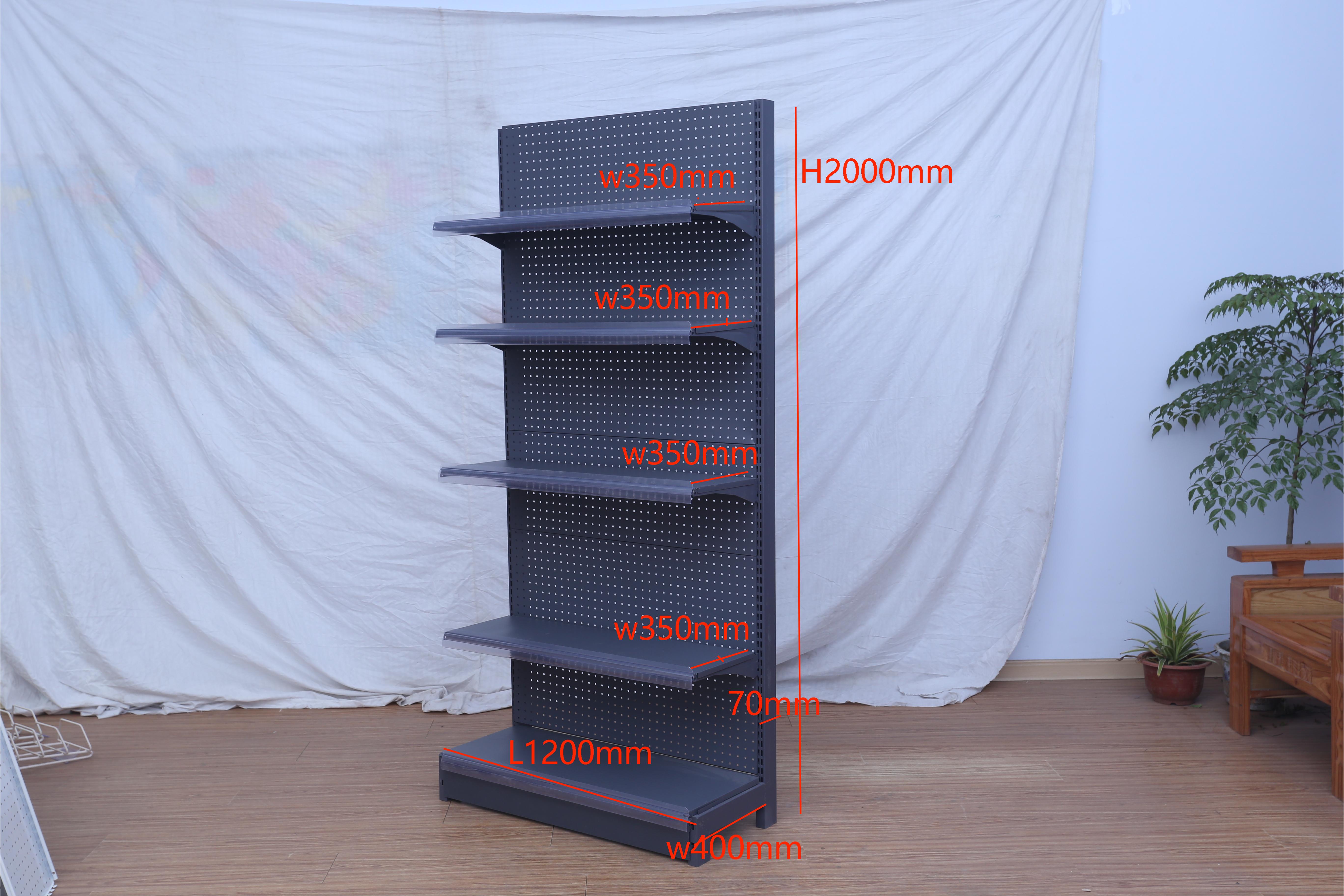

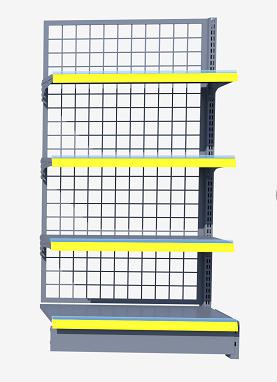

| Single sided (5 layers) | 900*400*1950 900*400*2250 |
30*60 30*70 30*80 40*60 40*80 |
T: 0.5-0.8 | T: 0.4-0.8 | T: 1.5-3.0 |

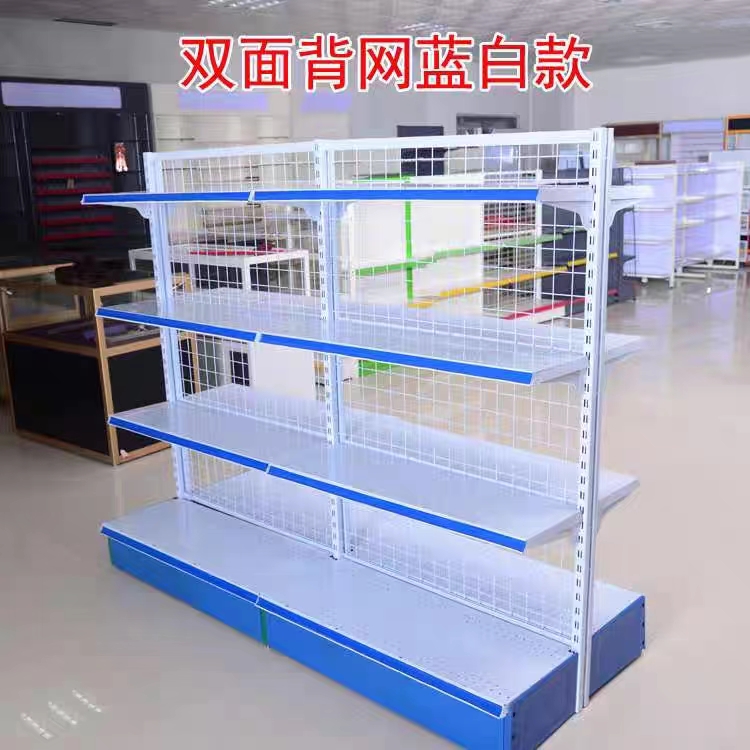

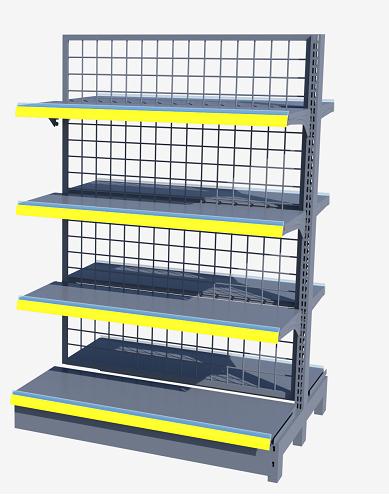

| Double sided (4 layers) | 900*700*1350 900*700*1650 |
||||
| End unit (4 layers) | 700*400*1350 700*400*1650 |
||||
| Shelf Bearing Capacity | 50-200kgs/layer | ||||
| Sample Time | About 7 to 10 working days | ||||
| Shelf Usage | Supermarket, Storage, Shops | ||||
Combined with horizontal bracing, diagonal bracing and bayonet. This structure is convenient to install and has stronger supporting power.
Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Laminates adopt strip laminates made with high precision, which feature strong bearing capacity, wear resistance, simple replacement, and low maintenance cost.
1. KD (Knocked-down) structure, polyfoam placed between every part, packed systematically and securely to prevent movement during transit.
2. Outer package consists of a 5-layer strong carton, sealed with tape and reinforced with packing belts.
3. Shipping marks or custom logos can be printed according to requirements.
4. Detailed installation instructions are included in each package.
Delivery standard time is within 10 days or custom-tailored based on order quantities.
Yes. The shelves can be fully customized in any size, type, and color to suit your specific retail store layout and preferences.
The standard bearing capacity ranges from 50kg to 200kg per layer, depending on the material thickness and design configuration selected.
The production and processing time for a standard shelf sample is approximately 7 to 10 working days.
We pack the products using a space-saving KD (Knocked-down) structure. Polyfoam is placed between all components inside a robust 5-layer outer carton, which is further reinforced with heavy-duty packing straps.
We deliver worldwide by Sea, by Air, or via major international express couriers, with delivery times aligned with your order quantity.
Yes, the uprights and beams are designed for quick slot-in connection. The structure includes custom safety pins to secure the beams, and a detailed instruction manual is provided with every shipment.
