Chaoyu Storage
1 / 5

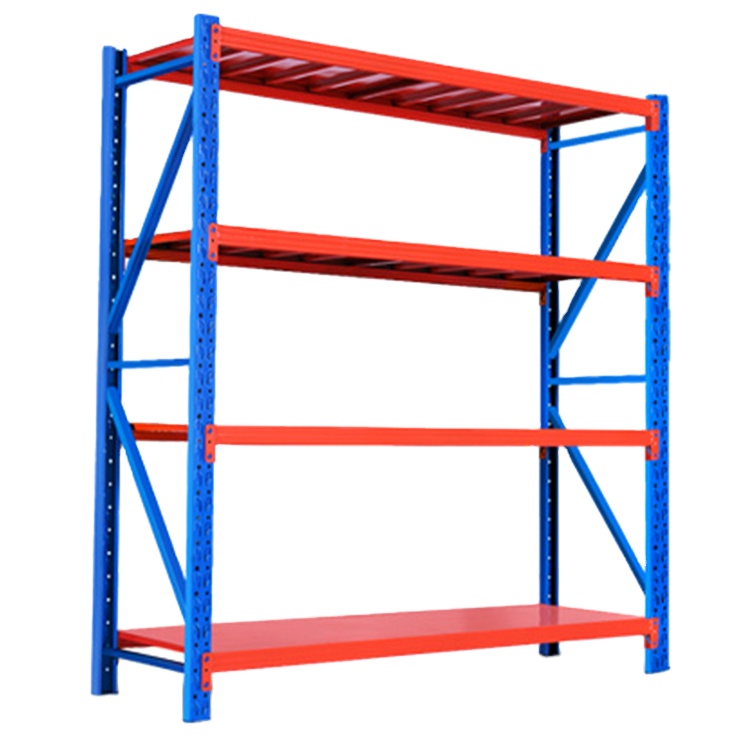

| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80.1.5mm | 0.6mm | 500kgs |
Depending on the specific dimensions, uprights, and beam configurations selected, the load capacity per layer ranges from 100 kgs to 500 kgs.
Yes, we provide custom sizes and tailored racking specifications. Please reach out to discuss your specific dimensional requirements.
We secure components using export carton box packing and bubble wrap packing. We can also print custom logos or specific shipping marks onto the packaging as requested.
Orders are typically dispatched within 10 days, depending on the quantity. We support various shipping methods including sea freight, air freight, and international express services.

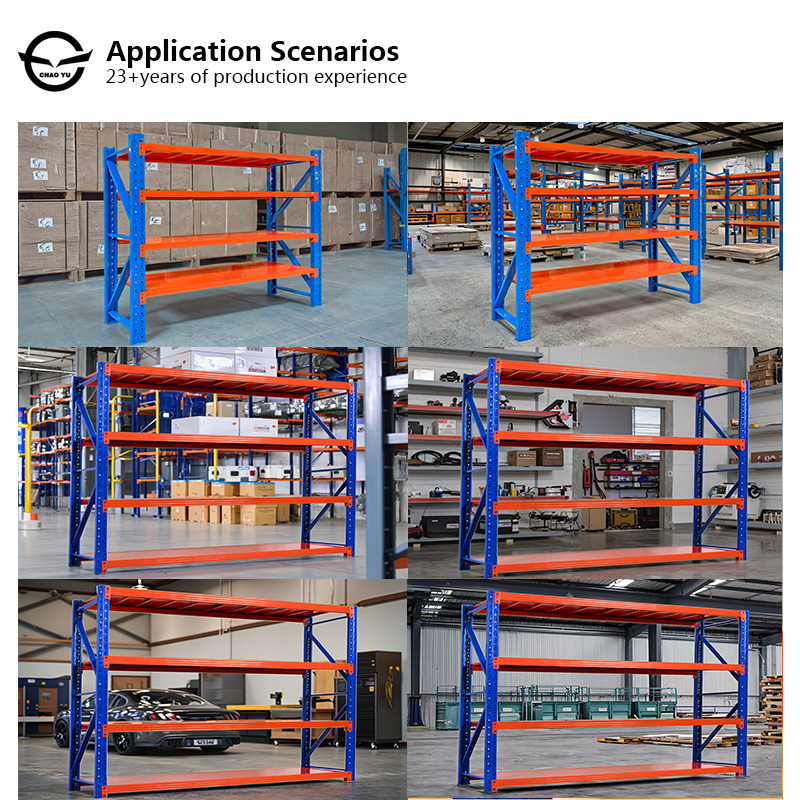

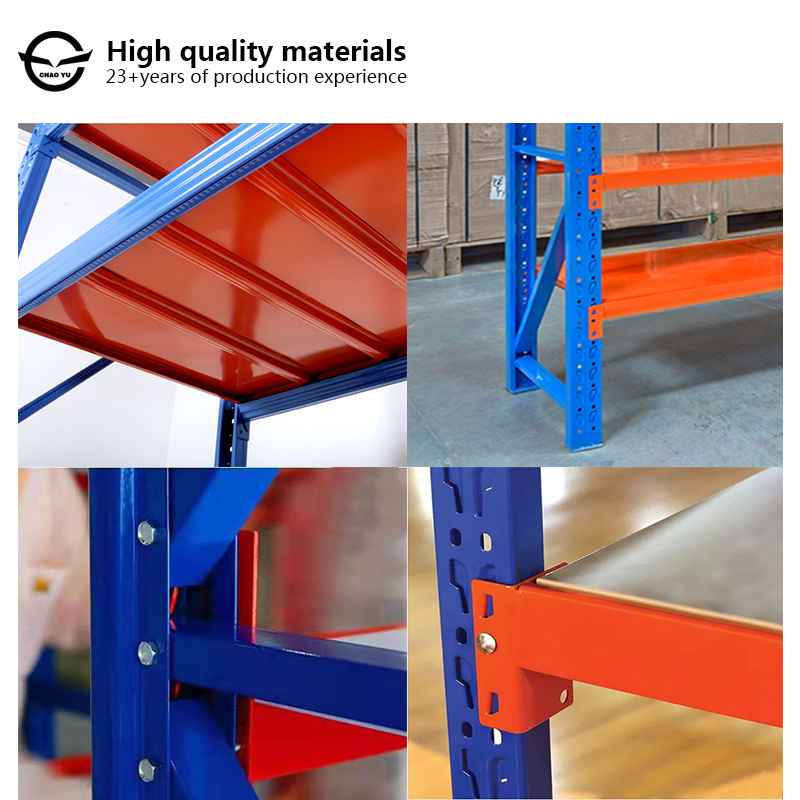

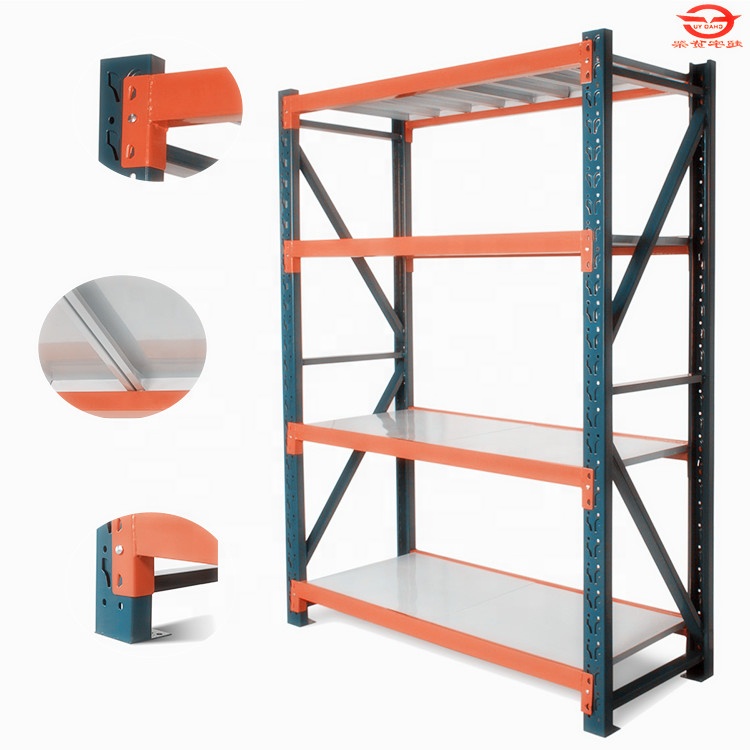

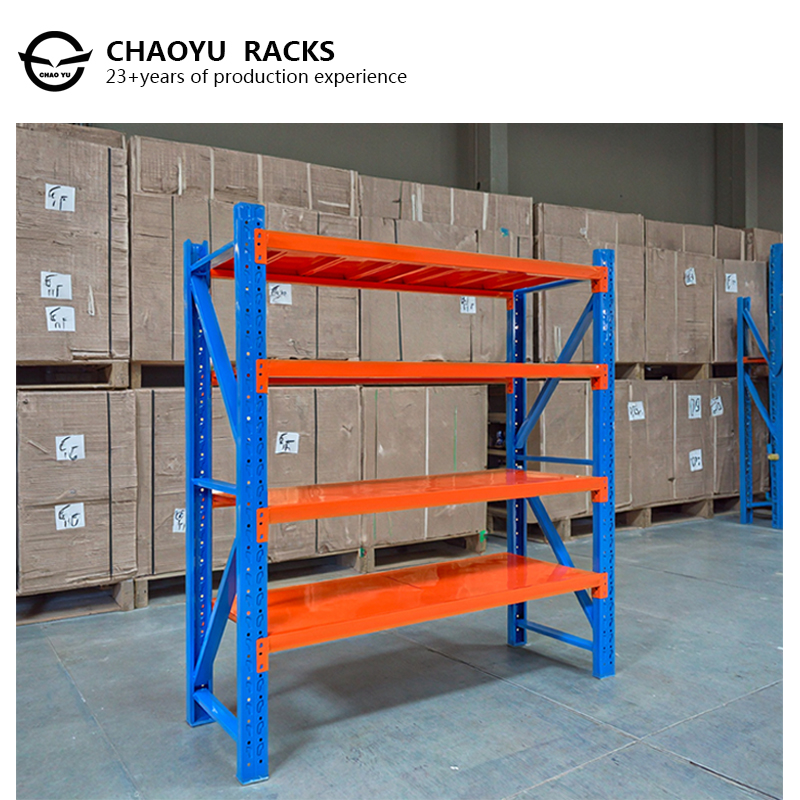

Absolutely. Our medium duty racking systems are designed with high-quality steel structures, making them ideal for both commercial store storage and heavy-duty industrial material handling.
